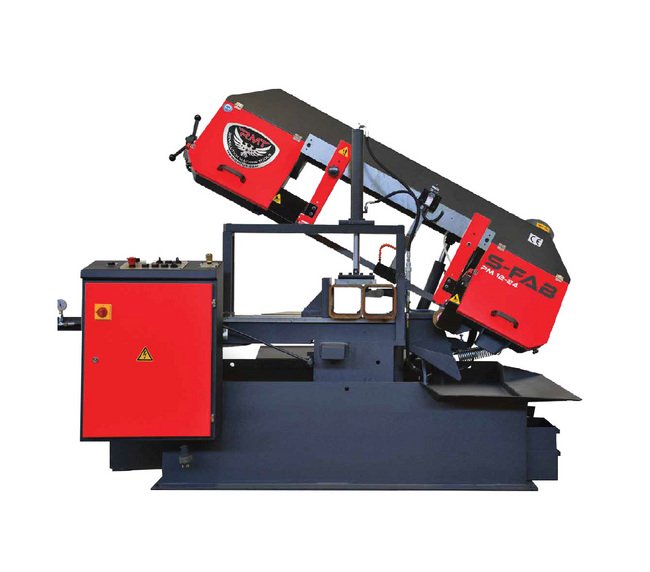

RMT S-FAB PM 12-24, 3 kW Semi-Automatic Pivot Band Saw
RMT S-FAB PM 12-24, 3 kW Semi-Automatic Pivot Band Saw
SKU:BAN-e602ff
Efficiently cut various materials with the RMT S-FAB PM 12-24 Semi-Automatic Pivot Band Saw. Featuring a 3 kW main motor and precision controls for accurate cuts.
Regular price
$8,399.99
Regular price
Sale price
$8,399.99
Unit price
per
Initiate Order
RMT S-FAB PM 12-24, 3 kW Semi-Automatic Pivot Band Saw
$8,399.99
Quantity: 1
Claim Your Seller Account
RMT S-FAB PM 12-24, 3 kW Semi-Automatic Pivot Band Saw
$8,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT S-FAB PM 12-24 is a robust 3 kW Main Motor Band Saw designed for both precision and efficiency. With cutting speeds ranging from 20 to 100 m/min, and a hydraulic motor power of 0.37 kW, it offers seamless cutting operations. This semi-automatic pivot type saw features a heavy-duty gearbox, sensitive pressure control, and a hydro mechanical blade tension system. Ideal for industrial settings requiring accurate cuts, it boasts a cutting capacity of up to 12.6 inches in round, flat, and square profiles. The optional features like the Hydraulic vice and blade tension enhance operational convenience, making it a versatile choice for diverse cutting needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

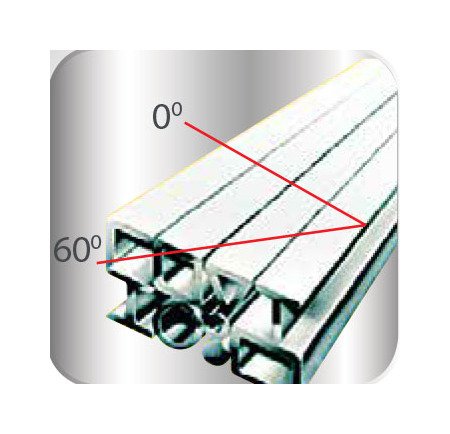

Capacities Capacity At 0 Degree Angle Flat Height X Width
12.6 x 24 in | 320 x 610 mm
Capacities Capacity At 0 Degree Angle Round
12.6 in | 320 mm
Capacities Capacity At 0 Degree Angle Square
12.6 in | 320 mm
Capacities Capacity At 15 Degree Angle Flat Height X Width
12.6 x 22.8 in | 320 x 580 mm
Capacities Capacity At 15 Degree Angle Round
12.6 in | 320 mm
Capacities Capacity At 15 Degree Angle Square
12.6 in | 320 mm
Capacities Capacity At 30 Degree Angle Flat Height X Width
12.6 x 20 in | 320 x 508 mm
Capacities Capacity At 30 Degree Angle Round
12.6 in | 320 mm
Capacities Capacity At 30 Degree Angle Square
12.6 in | 320 mm
Capacities Capacity At 45 Degree Angle Flat Height X Width
12.6 x 13.9 in | 320 x 353 mm
Capacities Capacity At 45 Degree Angle Round
12.6 in | 320 mm
Capacities Capacity At 45 Degree Angle Square
12.6 in | 320 mm
Capacities Capacity At 60 Degree Angle Flat Height X Width
7.8 x 11 in | 198 x 279 mm
Capacities Capacity At 60 Degree Angle Round
10.2 in | 259 mm
Capacities Capacity At 60 Degree Angle Square
8.9 in | 226 mm
Machine Dimensions Machine Height
54 in | 1372 mm
Machine Dimensions Machine Length
83 in | 2108 mm
Machine Dimensions Machine Width
48 in | 1219 mm
Optional Features
Hydraulic viceHydraulic blade tensionHydraulic top clampingDropsa air/oil clean lubrication systemMicromist cooling10 ft roller table10 ft motorized roller table
Specifications Band Dimension
13 ft 8 in. x 1.25 in. | 4166 x 32 mm
Specifications Cutting Speed
20 to 100 m/min | 65 to 328 ft/min
Specifications Features
Semi-Automatic
Specifications Hydraulic Motor Power
0.37 kW | 1/2 hp
Specifications Main Motor Power
3 kW | 4 hp
Specifications Roller Table Height
4 ft
Specifications Weight
1165 kg | 2568 lb
Standard Features
Control panelBlade brushMaterial length stopSecurity switchHeight adjustment switchSiti heavy duty gearboxInverterSensitive pressure controlHydro mechanical blade tensionCoolant pump
