RMT S-GENIUS HSC Series Cold Saw - Precision Metal Cutting Machine
RMT S-GENIUS HSC Series Cold Saw - Precision Metal Cutting Machine
SKU:BAN-ebc834
Enhance metal cutting efficiency with the precision and power of RMT S-GENIUS HSC Series Cold Saw.
Regular price
$37,999.00
Regular price
Sale price
$37,999.00
Unit price
per
Initiate Order
RMT S-GENIUS HSC Series Cold Saw - Precision Metal Cutting Machine
$37,999.00
Quantity: 1
Claim Your Seller Account
RMT S-GENIUS HSC Series Cold Saw - Precision Metal Cutting Machine
$37,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

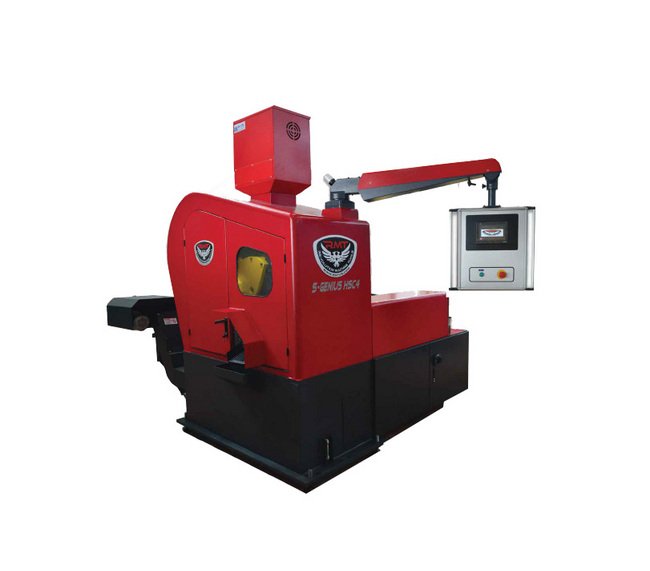

The RMT S-GENIUS HSC Series Cold Saw revolutionizes stock and tube cutting in the metal industry. With a cutting speed range of 40 to 280 m/min, a powerful 15 hp main motor, and precision cutting features like automatic clamping and adjustable blade stroke, this machine boosts production efficiency and quality. Equipped with high-end lubrication systems and world-class electronics, the S-GENIUS ensures optimal performance and longevity. With optional automated material handling tables and advanced controls, this saw is the go-to choice for achieving precise, repeatable cuts with ease.
Product Specifications

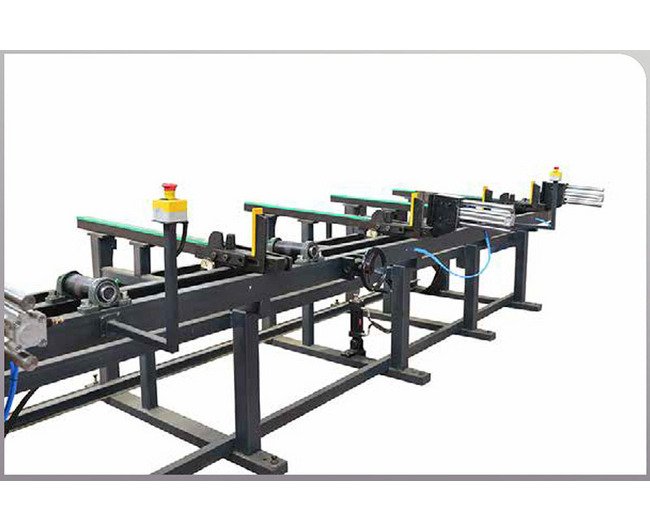

20 Feet Ft Automatic Material Handling Table Optional
Control your workflow with the optional twenty-foot automatic material handling table.The table is designed for operators to load material being delivered to the RMT S-GENIUS, HSC series saw for cutting. This type of automation allows operators to focus on productivity and quality.The perfect precision-cutting workhorse is the S-Series HSC saw. This saw, paired with the automatic material handling table, will create increased productivity with greater part repeatability.
Capacities Capacity At 0 Degree Angle Feeding Course
31.4 in | 797 mm
Capacities Capacity At 0 Degree Angle Maximum Vice Opening
4.7 in | 119 mm
Capacities Capacity At 0 Degree Angle Round Cutting Capacity
0.78 to 3.9 in | 20 to 99 mm

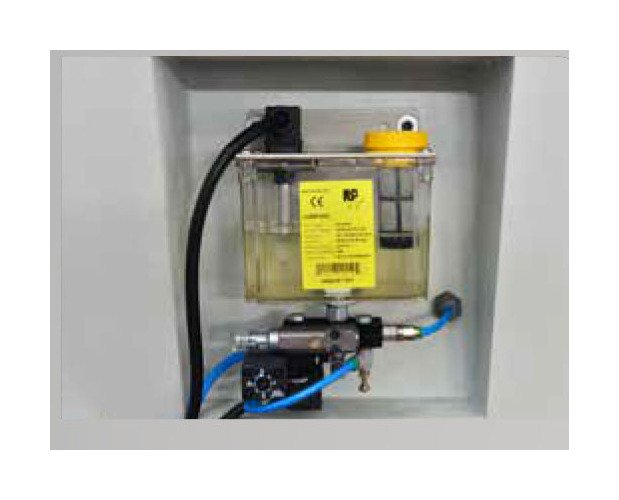

High End Lubrication Systems
Getting the most out of any machine is the goal of plant managers and business owners alike. That same philosophy is also shared with your partner here at Revolution Machine Tools; that is why we install lubricant systems designed to give you quality products while increasing the lifecycle of your machine.
Machine Dimensions Machine Height
92.9 in | 2360 mm
Machine Dimensions Machine Length
96.8 in | 2459 mm
Machine Dimensions Machine Width
102.7 in | 2608 mm
Note
3.9" Diameter Filled Material Cutting Time 11 Seconds
Optional Features
Micro spray coolingDrops air/oil clean lubrication20 ft automatic loading table

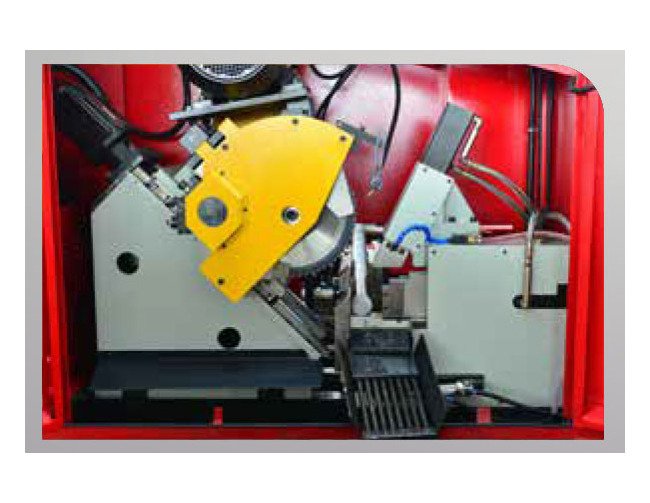

Precision Cutting And Material Delivery
The S-GENIUS, HSC Series Cold Saw is designed to provide the most efficient stock and tube cutting possible in the metal industry today.The saw comes standard with automatic clamping, adjustable blade stroke, material handling and output tray, and an enclosed cabinet. This machine is sure to increase your production in quantity, quality, and repeatability.
Specifications Circle Saw Size
14 x 0.09 in | 356 x 2.28 mm
Specifications Cutting Speed
40 to 280 m/min | 131 to 918 ft/min
Specifications Hydraulic Motor Power
2.2 kW | 3 hp
Specifications Main Motor Power
11 kW | 15 hp
Specifications Type
Cold Saw
Specifications Weight
3450 kg | 7606 lb
Standard Features
Control panelChip conveyorHydraulic clampSpeed controllerCover switch

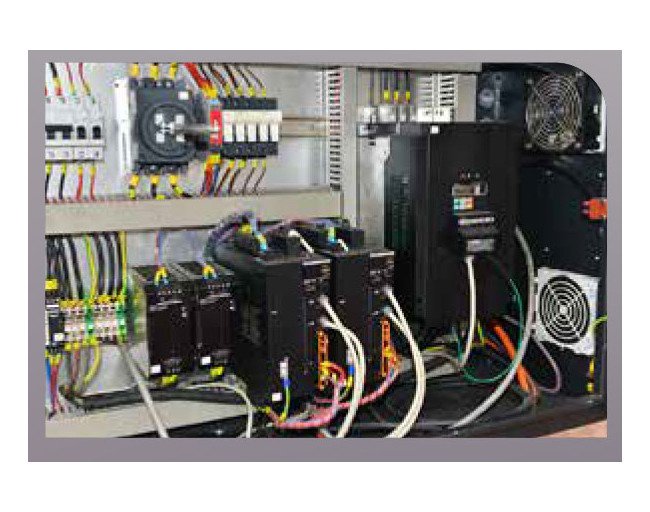

World Class Electronics And Controllers
Revolution Machine Tools delivers quality machines that fulfil our customer's needs. To fulfil this philosophy, we employ the highest level of world-class controllers and electrical components. Thus, we help our clients maintain and increase quality production.
