RMT S-SMART C18-24 Automatic Column Band Saw
RMT S-SMART C18-24 Automatic Column Band Saw
SKU:BAN-14b3fe
Powerful 5.5kW automatic band saw with hydraulic vice, NC control panel, and advanced features for efficient cutting.
Regular price
$16,999.99
Regular price
Sale price
$16,999.99
Unit price
per
Initiate Order
RMT S-SMART C18-24 Automatic Column Band Saw
$16,999.99
Quantity: 1
Claim Your Seller Account
RMT S-SMART C18-24 Automatic Column Band Saw
$16,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

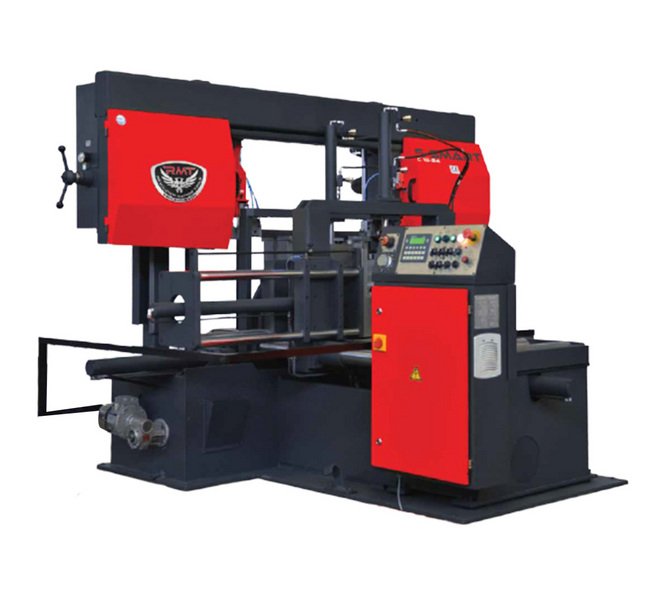

The RMT S-SMART C18-24 is a robust 5.5 kW automatic column band saw designed for precision straight cutting. With a cutting speed range of 20 to 100 m/min, this band saw offers exceptional versatility and efficiency. It features a hydraulic vice, material length stop, inverter, and other advanced functionalities for seamless cutting operations. Ideal for industrial applications requiring high-performance and reliability.
Product Specifications
Capacities Capacity At 0 Degree Angle Flat Height X Width
18.1 x 24 in | 460 x 610 mm
Capacities Capacity At 0 Degree Angle Round
18.1 in | 460 mm
Capacities Capacity At 0 Degree Angle Square
18.1 in | 460 mm
Machine Dimensions Machine Height
77 in | 1956 mm
Machine Dimensions Machine Length
123 in | 3124 mm
Machine Dimensions Machine Width
87 in | 2210 mm
Optional Features
Hydraulic blade tensionHydraulic top clampingDropsa air/oil clean lubrication systemMicromist cooling10 ft roller table10 ft motorized roller table
Specifications Band Dimension
204.7 x 1.61 in | 5200 x 41 mm
Specifications Cutting Speed
20 to 100 m/min | 65 to 328 ft/min
Specifications Features
Automatic
Specifications Hydraulic Motor Power
1.1 kW | 1.5 hp
Specifications Main Motor Power
5.5 kW | 7.5 hp
Specifications Weight
2700 kg | 5952 lb
Standard Features
NC control panelBlade brushHydraulic viceHydraulic feeding viceSplit viceSecurity switchHeight adjustment switchMaterial length stopSiti heavy duty gearboxInverterSensitive pressure controlHydro mechanical blade tensionCoolant pumpLinear guide railsProximity switch for sensing blade slippage
