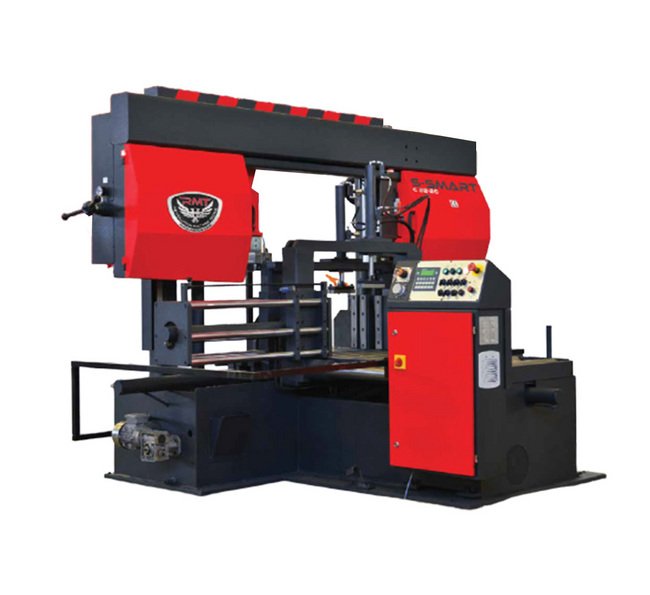

The RMT S-SMART C22-26 Band Saw is a high-performance, automatic column type straight cutting machine designed for precision cutting in industrial settings. Featuring a powerful 5.5 kW main motor and a range of advanced features such as NC control, hydraulic vice, and sensitive pressure control, this band saw offers exceptional cutting speed and accuracy. Ideal for heavy-duty operations, it has a capacity of 22 inches for round cuts and 22 x 26.4 inches for flat cuts, making it versatile for various materials. With optional features like hydraulic blade tension and micromist cooling, this band saw enhances efficiency and productivity.
Product Specifications
Capacities Capacity At 0 Degree Angle Flat Height X Width
22 x 26.4 in | 559 x 670 mm
Capacities Capacity At 0 Degree Angle Round
22.0 in | 559 mm
Capacities Capacity At 0 Degree Angle Square
22.0 in | 559 mm
Machine Dimensions Machine Height
81 in | 2057 mm
Machine Dimensions Machine Length
138 in | 3505 mm
Machine Dimensions Machine Width
87 in | 2210 mm
Optional Features
Hydraulic blade tensionHydraulic top clampingDropsa air/oil clean lubrication systemMicromist cooling10 ft roller table10 ft motorized roller table
Specifications Band Dimension
236.2 x 1.61 in | 6000 x 41 mm
Specifications Cutting Speed
20 to 100 m/min | 65 to 328 ft/min
Specifications Features
Automatic
Specifications Hydraulic Motor Power
1.1 kW | 1.5 hp
Specifications Main Motor Power
5.5 kW | 7.5 hp
Specifications Weight
3500 kg | 7,716 lb
Standard Features
NC controlBlade brushHydraulic viceHydraulic feeding viceSplit viceSecurity switchSiti heavy duty gearboxInverterSensitive pressure controlHydro mechanical blade tensionCoolant pumpLinear guide railsOptical saw height adjustmentProximity switch for sensing blade slippage
