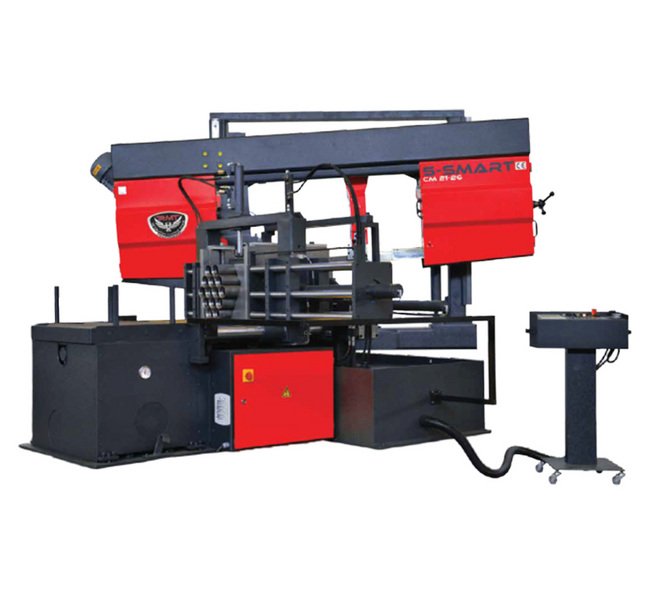

RMT S-SMART CM 21-26 Automatic Column Band Saw
RMT S-SMART CM 21-26 Automatic Column Band Saw
SKU:BAN-d4a3d2
RMT S-SMART CM 21-26: 5.5 kW Automatic Column Band Saw, 20-100 m/min cutting speed, NC control panel, hydraulic vice, precise multi-angle cutting.
Regular price
$18,999.99
Regular price
Sale price
$18,999.99
Unit price
per
Initiate Order
RMT S-SMART CM 21-26 Automatic Column Band Saw
$18,999.99
Quantity: 1
Claim Your Seller Account
RMT S-SMART CM 21-26 Automatic Column Band Saw
$18,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT S-SMART CM 21-26 is an advanced 5.5 kW automatic column type band saw designed for precision cutting in industrial settings. With a cutting speed ranging from 20 to 100 m/min, this band saw offers exceptional efficiency. Equipped with a 236.2 x 1.61 in band, powerful 5.5 kW main motor, and automatic features like NC control panel and hydraulic vice, it ensures smooth operation and consistent results. The machine boasts multiple angle cutting capacities, including 0, 30, 45, and 60 degrees, catering to various cutting needs. Perfect for metalworking and fabrication applications, this band saw combines power, precision, and automation for optimized performance.
Product Specifications
Capacities Capacity At 0 Degree Angle Flat Height X Width
21.3 x 26.4 in | 541 x 670 mm
Capacities Capacity At 0 Degree Angle Round
21.3 in | 541 mm
Capacities Capacity At 0 Degree Angle Square
21.3 in | 541 mm
Capacities Capacity At 30 Degree Angle Flat Height X Width
21.3 x 23.6 in | 541 x 599 mm
Capacities Capacity At 30 Degree Angle Round
21.3 in | 541 mm
Capacities Capacity At 30 Degree Angle Square
21.3 in | 541 mm
Capacities Capacity At 45 Degree Angle Flat Height X Width
21.3 x 17.7 in | 541 x 450 mm
Capacities Capacity At 45 Degree Angle Round
20.1 in | 510 mm
Capacities Capacity At 45 Degree Angle Square
17.7 in | 450 mm
Capacities Capacity At 60 Degree Angle Flat Height X Width
21.3 x 9.8 in | 541 x 249 mm
Capacities Capacity At 60 Degree Angle Round
10.6 in | 269 mm
Capacities Capacity At 60 Degree Angle Square
9.8 in | 249 mm
Machine Dimensions Machine Height
85 in | 2159 mm
Machine Dimensions Machine Length
123 in | 3124 mm
Machine Dimensions Machine Width
93 in | 2362 mm
Optional Features
Hydraulic blade tensionHydraulic top clampingDropsa air/oil clean lubrication systemMicromist cooling10 ft roller table10 ft motorized roller table
Specifications Band Dimension
236.2 x 1.61 in | 6000 x 41 mm
Specifications Cutting Speed
20 to 100 m/min | 65 to 328 ft/min
Specifications Features
Automatic
Specifications Hydraulic Motor Power
1.1 kW | 1.5 hp
Specifications Main Motor Power
5.5 kW | 7.5 hp
Specifications Weight
3840 kg | 8466 lb
Standard Features
NC control panelBlade brushHydraulic viceHydraulic feeding viceSecurity switchSiti heavy duty gearboxInverterSensitive pressure controlHydro mechanical blade tensionCoolant pumpLinear guide railsOptical saw height adjustmentProximity switch for sensing blade slippage
