RMT S-SMART CS 13-14 NC Straight Cutting Band Saw
RMT S-SMART CS 13-14 NC Straight Cutting Band Saw
SKU:BAN-c251b9
RMT S-SMART CS 13-14 NC Straight Cutting Band Saw - Powerful 3 kW motor, automatic operation, precise cutting, ideal for institutional buyers.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
RMT S-SMART CS 13-14 NC Straight Cutting Band Saw
$7,999.99
Quantity: 1
Claim Your Seller Account
RMT S-SMART CS 13-14 NC Straight Cutting Band Saw
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

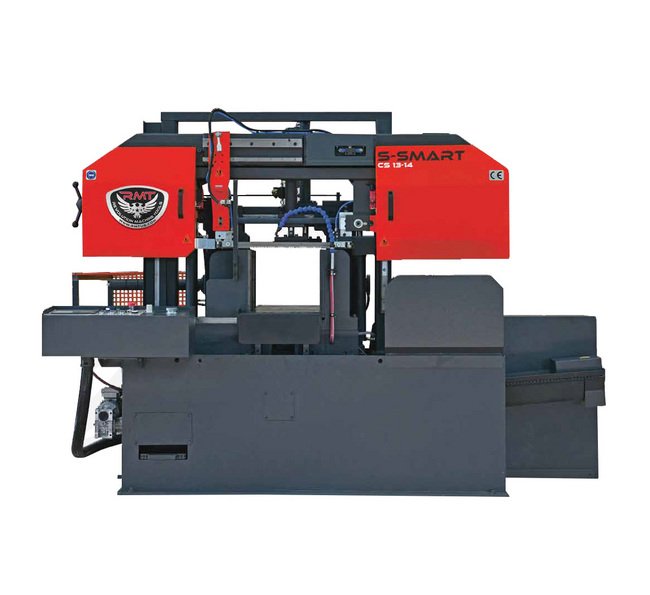

The RMT S-SMART CS 13-14 NC is a powerful 3 kW band saw designed for precise straight cutting applications. With a cutting speed range of 20 to 100 m/min, this automatic column type band saw offers enhanced efficiency and accuracy. Its robust construction, hydraulic motor power, and servo motor control ensure smooth operations for both consumer and institutional users. Featuring a range of standard and optional features, such as NC control panel, hydraulic vices, and planetary gearbox, this band saw delivers reliability and performance. Compliant with federal procurement standards and industry certifications, it is an ideal choice for a wide range of cutting tasks.
Product Specifications

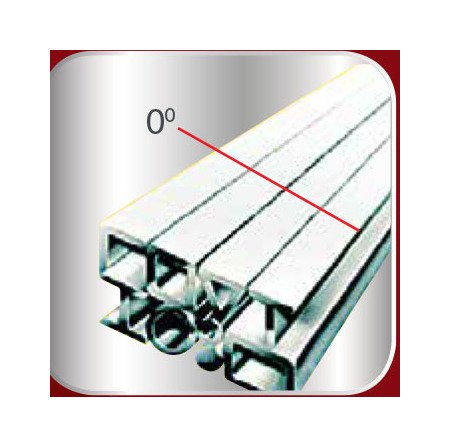

Capacities Capacity At 0 Degree Angle Flat Height X Width
13 x 14.1 in | 330 x 358 mm
Capacities Capacity At 0 Degree Angle Round
13.0 in | 330 mm
Capacities Capacity At 0 Degree Angle Square
13.0 in | 330 mm
Machine Dimensions Machine Height
73 in | 1854 mm
Machine Dimensions Machine Length
91 in | 2311 mm
Machine Dimensions Machine Width
62 in | 1575 mm
Optional Features
Hydraulic blade tensionHydraulic top clampingDropsa air/oil clean lubricationHexagonal vice for bundle cuttingMicro-spray cooling10 ft roller table10 ft motorized roller table
Specifications Band Dimension
172.4 x 1.34 in | 4380 x 34 mm
Specifications Coolant Motor Power
0.12 kW | 0.16 hp
Specifications Cutting Speed
20 to 100 m/min | 65 to 328 ft/min
Specifications Features
Automatic
Specifications Hydraulic Motor Power
1.5 kW | 2.2 hp
Specifications Main Motor Power
3 kW | 4 hp
Specifications Material Feeding Servo Motor Power
1 kW | 1.5 hp
Specifications Weight
2120 kg | 4674 lb
Standard Features
NC control panelBlade brushHydraulic fixed viceHydraulic feeding viceSplit viceSecurity switchPlanetary gearboxInverterSensitive pressure controlHydro mechanical blade tensionLinear guide railsOptical saw height adjustmentCoolant pump
