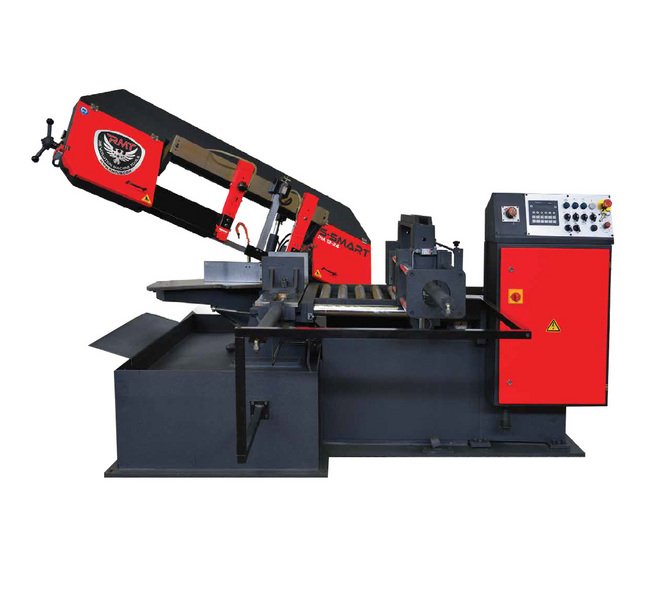

RMT S-SMART PM 12-24 Band Saw
RMT S-SMART PM 12-24 Band Saw
SKU:BAN-6eb037
Enhance cutting precision and efficiency with the RMT S-SMART PM 12-24 Band Saw. Automatic control, powerful motor, and versatile cutting capacities ensure optimal performance for industrial applications.
Regular price
$15,999.00
Regular price
Sale price
$15,999.00
Unit price
per
Initiate Order
RMT S-SMART PM 12-24 Band Saw
$15,999.00
Quantity: 1
Claim Your Seller Account
RMT S-SMART PM 12-24 Band Saw
$15,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RMT S-SMART PM 12-24 Band Saw from the S-SMART series combines precision cutting with automation. Equipped with a powerful 3 kW main motor and a range of cutting capacities, this machine ensures efficiency in various angle cuts and material sizes. Its automatic features, including a control panel, hydraulic vice, and sensitive pressure control, streamline operations while ensuring safety. Optional features like hydraulic blade tension and micromist cooling expand its capabilities. This band saw is designed to meet the rigorous demands of industrial applications, optimizing cutting processes for enhanced productivity.
Product Specifications
Capacities Capacity At 0 Degree Angle Flat Height X Width
12.6 x 24 in | 320 x 610 mm
Capacities Capacity At 0 Degree Angle Round
12.6 in | 320 mm
Capacities Capacity At 0 Degree Angle Square
12.6 in | 320 mm
Capacities Capacity At 30 Degree Angle Flat Height X Width
7.9 x 11 in | 200 x 279 mm
Capacities Capacity At 30 Degree Angle Round
10.2 in | 259 mm
Capacities Capacity At 30 Degree Angle Square
8.9 in | 226 mm
Capacities Capacity At 45 Degree Angle Flat Height X Width
12.6 x 14 in | 320 x 356 mm
Capacities Capacity At 45 Degree Angle Round
12.6 in | 320 mm
Capacities Capacity At 45 Degree Angle Square
12.6 in | 320 mm
Capacities Capacity At 60 Degree Angle Flat Height X Width
12.6 x 20 in | 320 x 508 mm
Capacities Capacity At 60 Degree Angle Round
12.6 in | 320 mm
Capacities Capacity At 60 Degree Angle Square
12.6 in | 320 mm
Capacities Capacity At 75 Degree Angle Flat Height X Width
12.6 x 22.8 in | 320 x 579 mm
Capacities Capacity At 75 Degree Angle Round
12.6 in | 320 mm
Capacities Capacity At 75 Degree Angle Square
12.6 in | 320 mm
Machine Dimensions Machine Height
60 in | 1524 mm
Machine Dimensions Machine Length
94 in | 2388 mm
Machine Dimensions Machine Width
95 in | 2413 mm
Optional Features
Hydraulic blade tensionHydraulic top clampingDropsa air/oil clean lubrication systemMicromist cooling10 ft roller table10 ft motorized roller table
Specifications Band Dimension
163.8 x 1.34 in | 4160 x 34 mm
Specifications Cutting Speed
20 to 100 m/min | 65 to 328 ft/min
Specifications Features
Automatic
Specifications Hydraulic Motor Power
1.1 kW | 1.5 hp
Specifications Main Motor Power
3 kW | 4 hp
Specifications Weight
2060 kg | 4542 lb
Standard Features
Control panel NCBlade brushHydraulic viceHydraulic feeding viceSecurity switchHeight adjustment switchSiti heavy duty gearboxInverterSensitive pressure controlHydro mechanical blade tensionCoolant pumpAnti vibration cylinder
