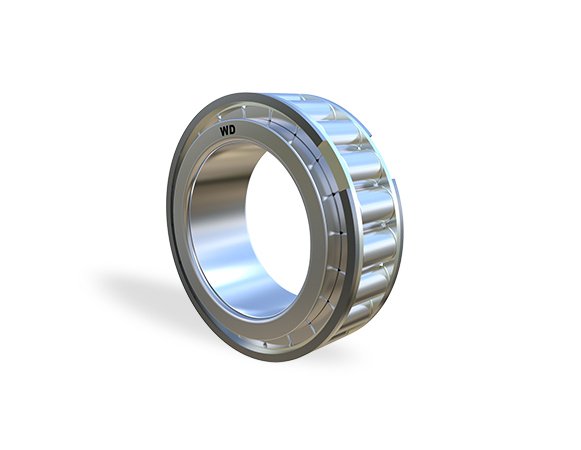

RN Full Complement Cylindrical Roller Bearings without Outer Ring

Name: RN Full Complement Cylindrical Roller Bearings without Outer Ring
Brand: WD Bearings
SKU: CYL-70d0b2
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-70d0b2

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Basic Load Rating Dynamic Cr Basic Load Rating

37 kN

Basic Load Rating Static Cor Basic Load Rating

54.0 kN

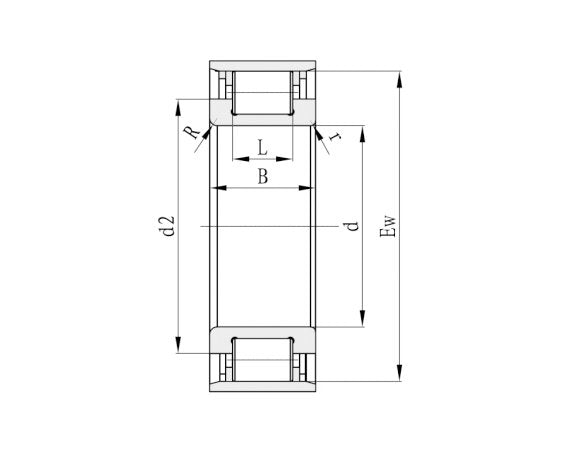

Boundary Dimensions Bore Diameter

22 mm

Boundary Dimensions Dimension D2

29.8 mm

Boundary Dimensions Dimension Ew

34.720 mm

Boundary Dimensions Minimum Dimension R

0.3 mm

Boundary Dimensions Overall Bearing Width

23 mm

Specifications Limiting Speed

9900 rpm

Specifications Type

2 Snap Rings and 2 Washers

RN Full Complement Cylindrical Roller Bearings without Outer Ring
