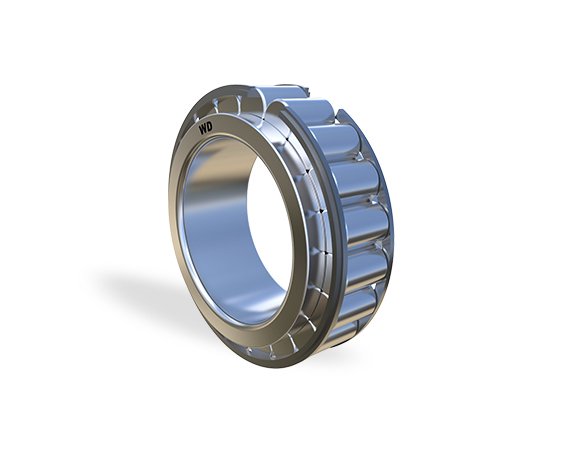

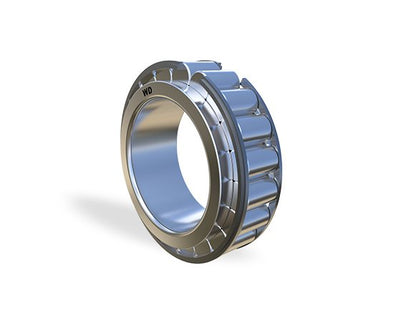

RN Full Complement Cylindrical Roller Bearings without Outer Ring

Name: RN Full Complement Cylindrical Roller Bearings without Outer Ring
Brand: WD Bearings
SKU: CYL-ff05e9
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-ff05e9

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Basic Load Rating Dynamic Cr Basic Load Rating

32.6 kN

Basic Load Rating Static Cor Basic Load Rating

32.9 kN

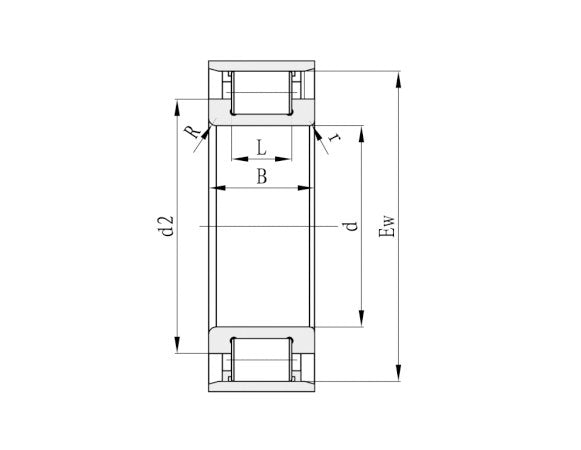

Boundary Dimensions Bore Diameter

30 mm

Boundary Dimensions Dimension D2

40.15 mm

Boundary Dimensions Dimension Ew

50.740 mm

Boundary Dimensions Minimum Dimension R

0.3 mm

Boundary Dimensions Overall Bearing Width

14 mm

Specifications Limiting Speed

7600 rpm

Specifications Type

2 Stepped Snap Rings

RN Full Complement Cylindrical Roller Bearings without Outer Ring
