RN Full Complement Cylindrical Roller Bearings without Outer Ring

Name: RN Full Complement Cylindrical Roller Bearings without Outer Ring
Brand: WD Bearings
SKU: CYL-b376d3
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-b376d3

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Basic Load Rating Dynamic Cr Basic Load Rating

45 kN

Basic Load Rating Static Cor Basic Load Rating

48.1 kN

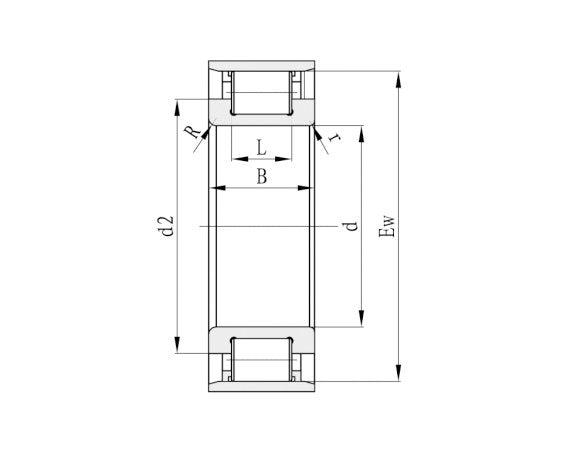

Boundary Dimensions Bore Diameter

25 mm

Boundary Dimensions Dimension D2

35.80 mm

Boundary Dimensions Dimension Ew

46.52 mm

Boundary Dimensions Minimum Dimension R

0.5 mm

Boundary Dimensions Overall Bearing Width

18 mm

Specifications Limiting Speed

8400 rpm

Specifications Type

2 Stepped Snap Rings

RN Full Complement Cylindrical Roller Bearings without Outer Ring
