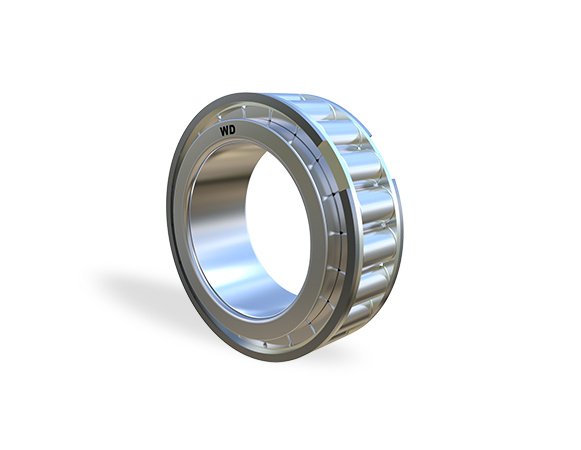

RN Full Complement Cylindrical Roller Bearings without Outer Ring

Name: RN Full Complement Cylindrical Roller Bearings without Outer Ring
Brand: WD Bearings
SKU: CYL-1705c0
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-1705c0

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Basic Load Rating Dynamic Cr Basic Load Rating

31.2 kN

Basic Load Rating Static Cor Basic Load Rating

34.4 kN

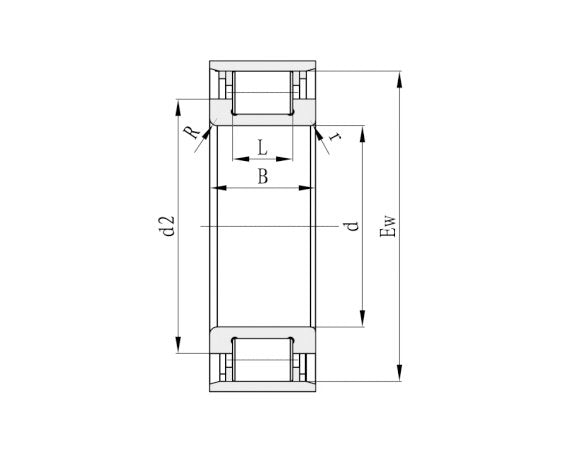

Boundary Dimensions Bore Diameter

25 mm

Boundary Dimensions Dimension D2

34.80 mm

Boundary Dimensions Dimension Ew

42.51 mm

Boundary Dimensions Minimum Dimension R

0.5 mm

Boundary Dimensions Overall Bearing Width

16 mm

Specifications Limiting Speed

8900 rpm

Specifications Type

2 Snap Rings and 2 Washers

RN Full Complement Cylindrical Roller Bearings without Outer Ring
