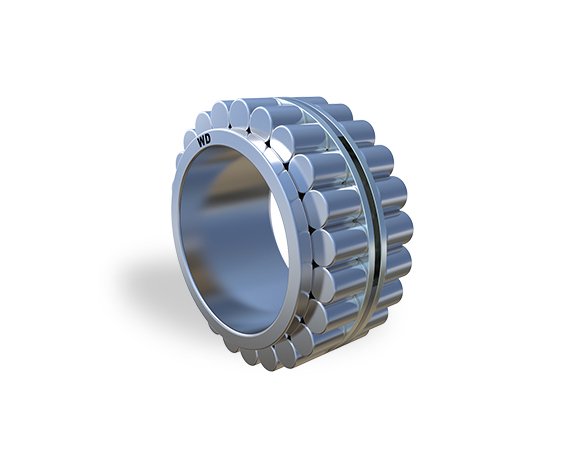

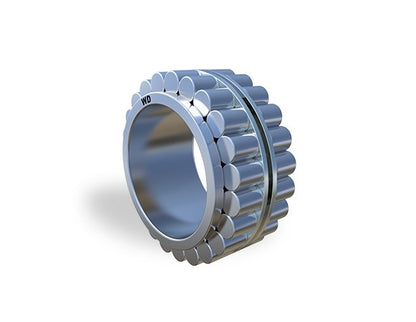

RNN Double Row Full Complement Cylindrical Roller Bearings without Outer Ring

Name: RNN Double Row Full Complement Cylindrical Roller Bearings without Outer Ring
Brand: WD Bearings
SKU: CYL-21f967
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-21f967

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Basic Load Rating Dynamic Cr Basic Load Rating

350 kN

Basic Load Rating Static Cor Basic Load Rating

550 kN

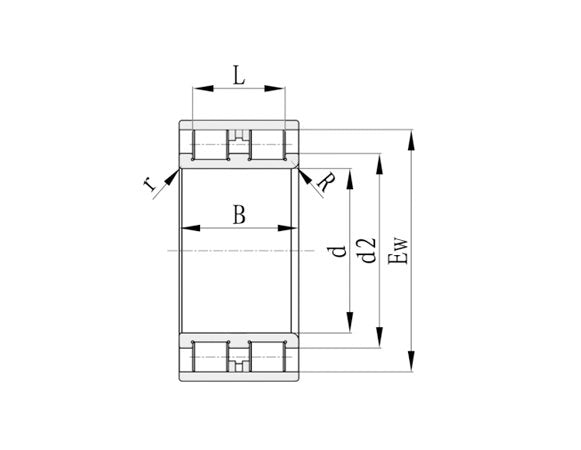

Boundary Dimensions Bore Diameter

90 mm

Boundary Dimensions Dimension D2

106.5 mm

Boundary Dimensions Dimension Ew

130.11 mm

Boundary Dimensions Minimum Dimension R

1.5 mm

Boundary Dimensions Overall Bearing Width

67 mm

Specifications Limiting Speed

2800 rpm

Specifications Type

1 Snap Rings and 2 Washers

RNN Double Row Full Complement Cylindrical Roller Bearings without Outer Ring
