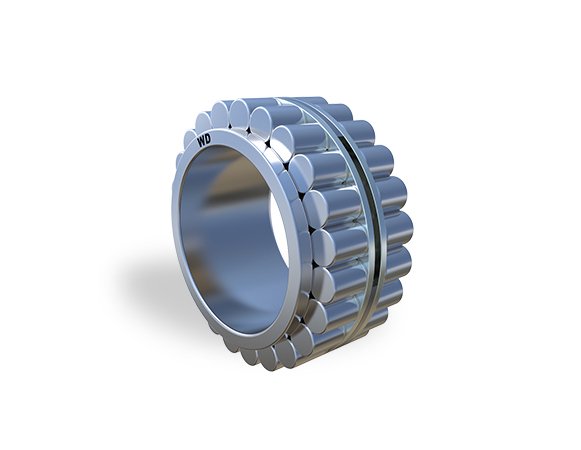

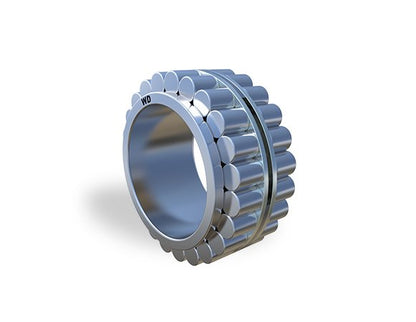

RNN Double Row Full Complement Cylindrical Roller Bearings without Outer Ring

Name: RNN Double Row Full Complement Cylindrical Roller Bearings without Outer Ring
Brand: WD Bearings
SKU: CYL-5098e7
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-5098e7

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Basic Load Rating Dynamic Cr Basic Load Rating

810 kN

Basic Load Rating Static Cor Basic Load Rating

1390 kN

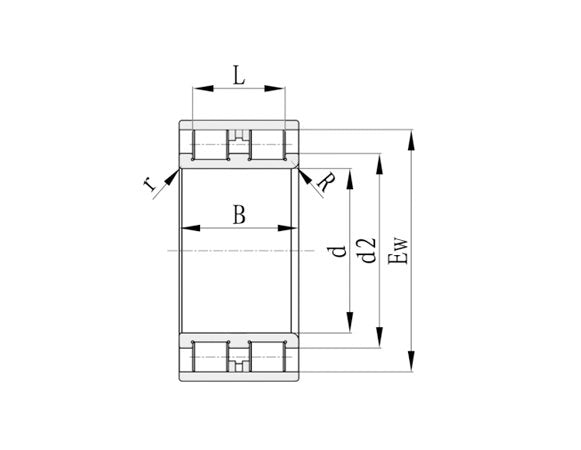

Boundary Dimensions Bore Diameter

150 mm

Boundary Dimensions Dimension D2

170.5 mm

Boundary Dimensions Dimension Ew

206.8 mm

Boundary Dimensions Minimum Dimension R

2.1 mm

Boundary Dimensions Overall Bearing Width

100 mm

Specifications Limiting Speed

1760 rpm

Specifications Type

1 Snap Rings and 2 Washers

RNN Double Row Full Complement Cylindrical Roller Bearings without Outer Ring
