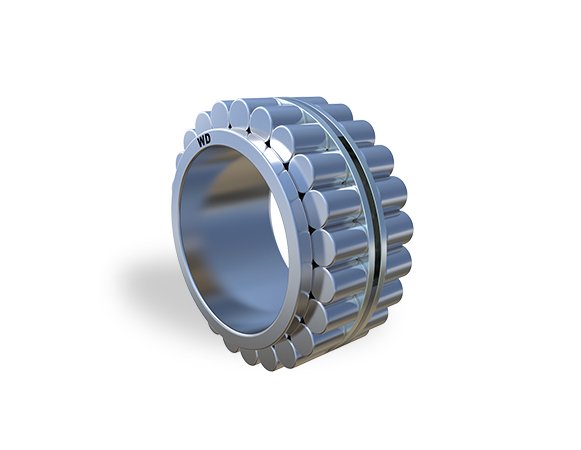

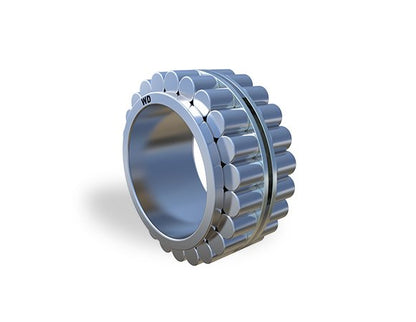

RNN Double Row Full Complement Cylindrical Roller Bearings without Outer Ring

Name: RNN Double Row Full Complement Cylindrical Roller Bearings without Outer Ring
Brand: WD Bearings
SKU: CYL-55a0bf
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-55a0bf

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Basic Load Rating Dynamic Cr Basic Load Rating

480 kN

Basic Load Rating Static Cor Basic Load Rating

813 kN

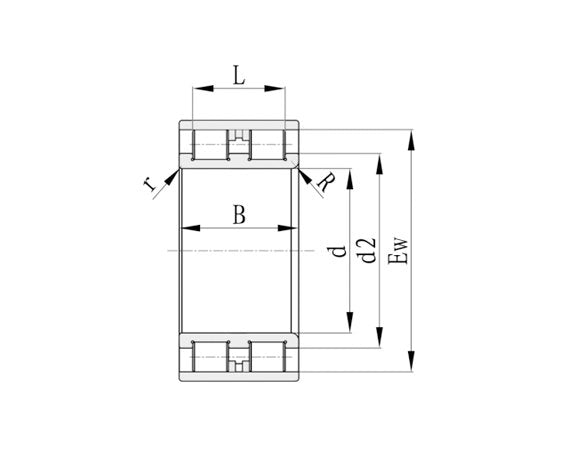

Boundary Dimensions Bore Diameter

110 mm

Boundary Dimensions Dimension D2

127.9 mm

Boundary Dimensions Dimension Ew

156.13 mm

Boundary Dimensions Minimum Dimension R

1 mm

Boundary Dimensions Overall Bearing Width

80 mm

Specifications Limiting Speed

2350 rpm

Specifications Type

1 Snap Rings and 2 Washers

RNN Double Row Full Complement Cylindrical Roller Bearings without Outer Ring
