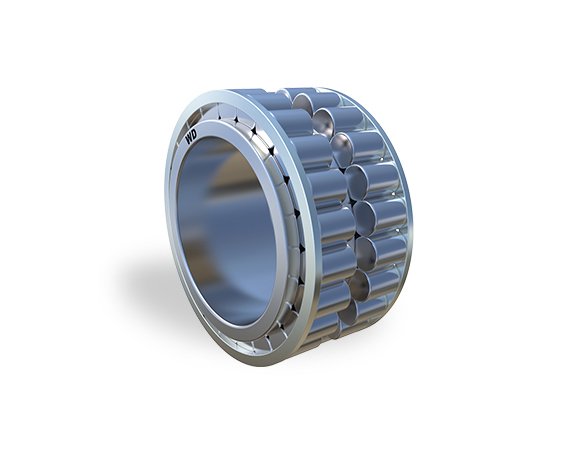

RNN Double Row Full Complement Cylindrical Roller Bearings without Outer Ring

Name: RNN Double Row Full Complement Cylindrical Roller Bearings without Outer Ring
Brand: WD Bearings
SKU: CYL-5f19c4
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-5f19c4

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Basic Load Rating Dynamic Cr Basic Load Rating

716 kN

Basic Load Rating Static Cor Basic Load Rating

1140 kN

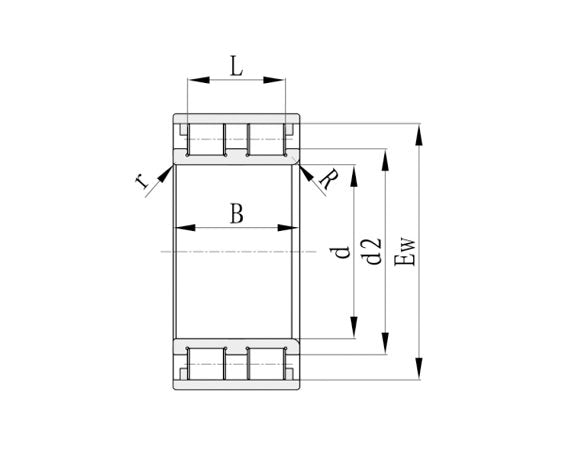

Boundary Dimensions Bore Diameter

80 mm

Boundary Dimensions Dimension D2

106.7 mm

Boundary Dimensions Dimension Ew

141.92 mm

Boundary Dimensions Minimum Dimension R

2 mm

Boundary Dimensions Overall Bearing Width

130 mm

Specifications Limiting Speed

2700 rpm

Specifications Type

2 Washers

RNN Double Row Full Complement Cylindrical Roller Bearings without Outer Ring
