Robust Tower Stretch Wrapping Machine
Robust Tower Stretch Wrapping Machine
SKU:AUT-1cfb47
High-performance tower stretch wrapping machine for seamless operation and efficiency, designed with advanced features for industrial applications.
Regular price
$34,999.00
Regular price
Sale price
$34,999.00
Unit price
per
Initiate Order
Robust Tower Stretch Wrapping Machine
$34,999.00
Quantity: 1
Claim Your Seller Account
Robust Tower Stretch Wrapping Machine
$34,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

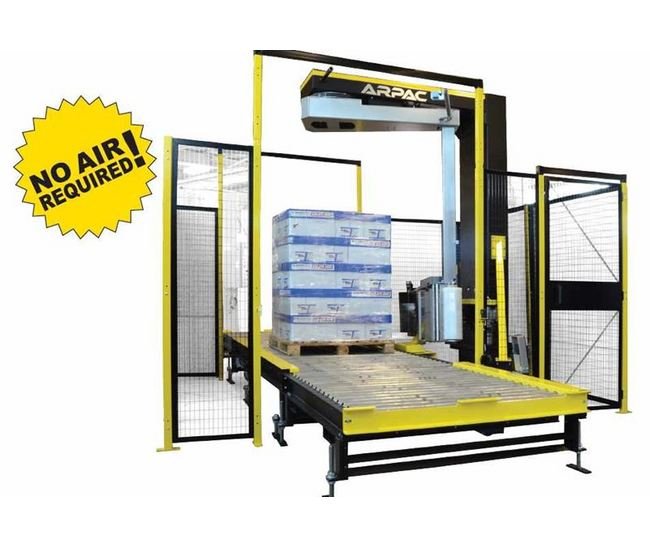

The Robust Tower Stretch Wrapping Machine by ARPACSTRETCH™ is a high-performance automatic rotary tower stretch wrapping machine designed for seamless operation. With a load height range of 24 to 80 inches, maximum load diagonal clearance of 75 inches, and a load capacity of 4000 lbs, this machine offers exceptional efficiency. It features advanced specifications like a tower speed of up to 15 rpm, electronic film tension adjustment control, and Allen-Bradley® HMI operator control panel. The machine's sturdy construction, eco-friendly powder coating, and various safety features make it ideal for industrial applications requiring reliable pallet stretch wrapping equipment.
Product Specifications
Electrical Power Requirements Alternating Current Ac Voltage
230 V
Electrical Power Requirements Current
20 A
Electrical Power Requirements Frequency
60 Hz
Electrical Power Requirements Number Of Phase
3
Electrical Power Requirements Power
2.4 kW
Features Features

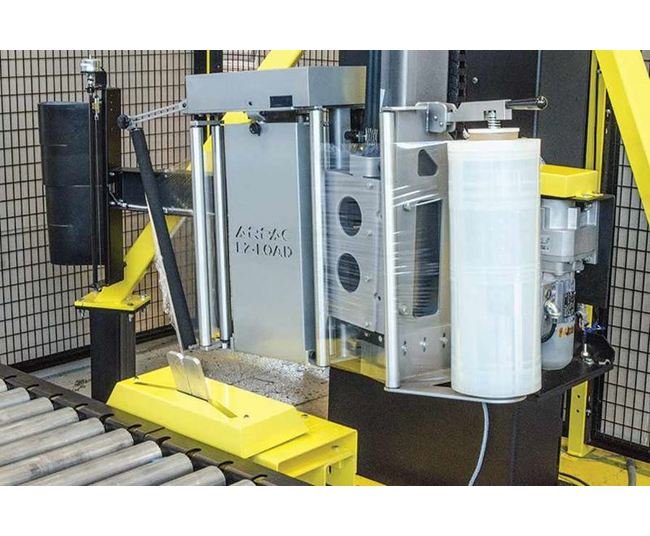

Machine Features Flashing safety beacon Adjustable top and bottom illuminated LED wrap counters Magnetic proximity switches in place of mechanical limit switches Top film overwrap control feature (TOC) Electronic film tension adjustment control on control panel Long-range photo eye for automatic load height sensing User-friendly Allen-Bradley® HMI operator control panel Built-in self-diagnostics Positive home position alignment CDLR conveyor or drag chain conveyor Electric cut, clamp, and wipe System Components Heavy-duty, welded steel construction (no plastic panels) designed for long life Eco-friendly, durable powder coating Variable wrap arm speed using 3/4 HP, 90Vdc motor with ANSI 60 chain drive system Up to 15 RPM rotating arm can deliver 25â55 loads per hour Dual V-belt drive rotating arm NEMA 3 commutator Conveyors Chain driven roller conveyor can support up to 4,000 lb. Three strand drag chain conveyor can support up to 3,000 lb. Integrated film clamp Automatic indexing Controls Hardware Allen-Bradley® power, control, and safety components Allen-Bradley® MicroLogix⢠PLC NEMA 12 electrical cabinet UL/CSA approved components Film Delivery System EZ-Load® film pre-stretch dispenser for 20" film rolls Dual anti-static film rollers with manufacturerâs lifetime warranty Film pre-stretch capability from 150 to 300% stretch (200% standard) Variable carriage speed up to 21 feet per minute Dancer bar variable corner compensation Electronic film tension adjustment control
Options Options
Tower and arm extensions for wrapping loads exceeding standard machine capability 30" film delivery system Other NEMA rated control enclosures available Optional input voltages Cold and freezer packages available Free-standing control panel
Specifications Height
123 in
Specifications Load Capacity
4000 lb
Specifications Load Height
24 to 80 in
Specifications Load Length
53 in
Specifications Load Width
53 in
Specifications Machine Length
20 in
Specifications Machine Width
167 in
Specifications Maximum Load Diagonal Clearance
0 to 75 in
Specifications Tower Speed
0 to 15 rpm
