The XLA Linear Actuators are the pinnacle of robustness within the Signature Motion lineup, boasting outstanding structural strength to support heavy-duty applications without the need for additional structural reinforcement. Available in two standard frame sizes - XLA 9 and XLA 15, these actuators are designed as standalone Y-axis motion stages for gantry applications. Featuring a compact T-slot aluminum extrusion construction, precision linear profile rail guides, and ball screw drive mechanism, the XLA actuators offer exceptional rigidity, ultra-high capacity, and precise, repeatable motion ideal for a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

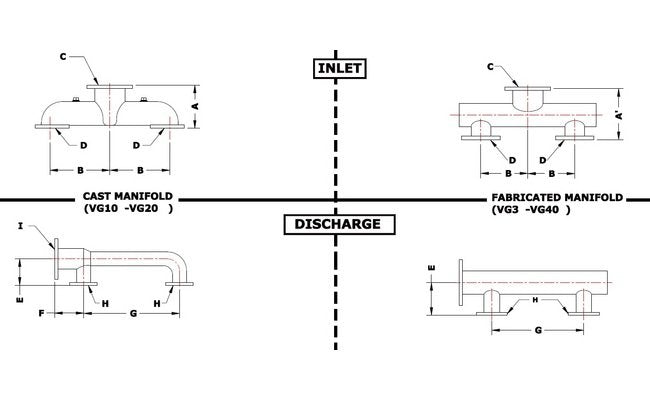

Dimension Discharge Flange Size H
3 x 7-1/2 in
Dimension Discharge Flange Size I
4 x 9 in | 100 x 220 mm
Dimension Discharge Size E
5-1/4 in | 133 mm
Dimension Discharge Size F
5-3/4 in | 146 mm
Dimension Discharge Size G
21-1/4 in
Dimension Inlet Flange Size C
6 x 11 in | 150 x 285 mm
Dimension Inlet Flange Size D
4 x 9 in
Dimension Inlet Size A
11 in
Dimension Inlet Size B
10-5/8 in | 270 mm
Dimension Note For Dimension
Bolt Holes Straddle Center LineProcess Connection Flanges Flat Faced with DIN Bolt PatternAll Flanges Flat Faced with ANSI Bolt PatternCast Manifolds are Constructed Out of CIFabricated Manifolds are Constructed of CS, 304SS or 316SS
Material Construction Features Bearing Carrier Material
Carbon Steel
Material Construction Features Cone Material
304 Cast Stainless Steel (SS)
Material Construction Features Head Material
304 Cast Stainless Steel (SS)
Material Construction Features Housing Material
304 Cast Stainless Steel (SS)
Material Construction Features Package Gland Studs And Nuts Mate
316 Cast Stainless Steel (SS)
Material Construction Features Rotor Material
304 Cast Stainless Steel (SS)
Material Construction Features Shaft Material
316 Cast Stainless Steel (SS)
Specifications Approximate Pump Weight
900 lb | 410 kg
Specifications Bearing Design
Double row spherical roller bearing, external, grease lubricated, Type: NSK 21311EAE4
Specifications Certifications
German Institute for Standardization (DIN)
Specifications Cone Opening Vacuum Level
Low (L)
Specifications Manifold Inlet Flange Connection Size
6 in | 150 mm
Specifications Manifold Outlet Flange Connection Size
4 in | 100 mm
Specifications Nominal Sealing Liquid Flow Rate At 15 Inch In Me
40 L/min | 10 g/min
Specifications Pump Inlet Flange Connection Size
4 in | 100 mm
Specifications Pump Outlet Flange Connection Size
3 in | 80 mm
Specifications Sealing Liquid Connection Size
1 in
Specifications Sealing Liquid Connection Type
National Pipe Thread (NPT)
Specifications Shaft Diameter Drive End
2 in | 50.8 mm
Specifications Shaft Sealing
Packing
Specifications Type
Single stage rotor, cone shape ports, liquid ring vacuum pump
Test Data Conditions Absolute Barometric Pressure
760 mmHg | 29.92 inHg
Test Data Conditions Inlet Gas Temperature
15.6 ºC | 60 ºF
Test Data Conditions Relative Humidity
50 %
Test Data Conditions Sealing Liquid Temperature
15.6 ºC | 60 ºF
