Rod Threaded Extension Split Tubing Clamp
Rod Threaded Extension Split Tubing Clamp
SKU:PIP-299985
Securely suspend copper tubes with ease using the Rod Threaded Extension Split Tubing Clamp. Compliant with federal specifications for stability and durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Rod Threaded Extension Split Tubing Clamp
$29.99
Quantity: 1
Claim Your Seller Account
Rod Threaded Extension Split Tubing Clamp
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

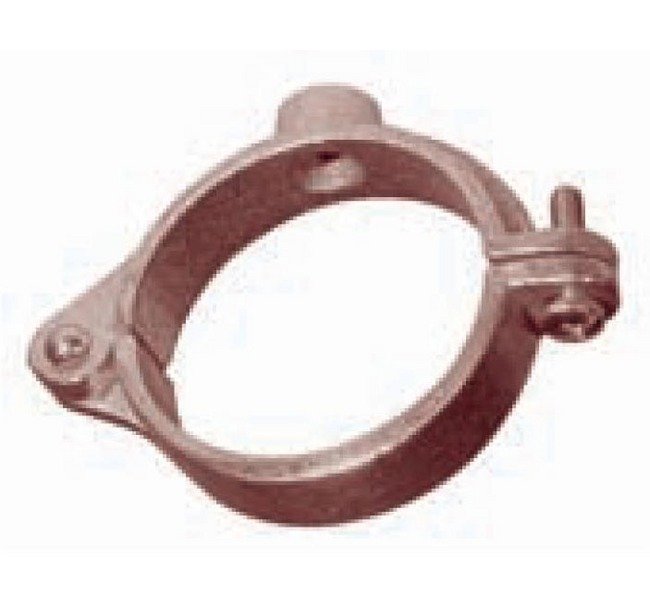

The Rod Threaded Extension Split Tubing Clamp is designed for suspending non-insulated stationary copper tubes efficiently. Made of malleable iron with a copper plated finish, it offers a secure and durable solution. The hinged design enables easy installation and a tight fit on copper tubing. With a maximum load capacity of 180 lbs and a dimensional accuracy to ensure stability, this clamp is ideal for various applications. Compliant with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69, it meets rigorous industry standards.
Product Specifications

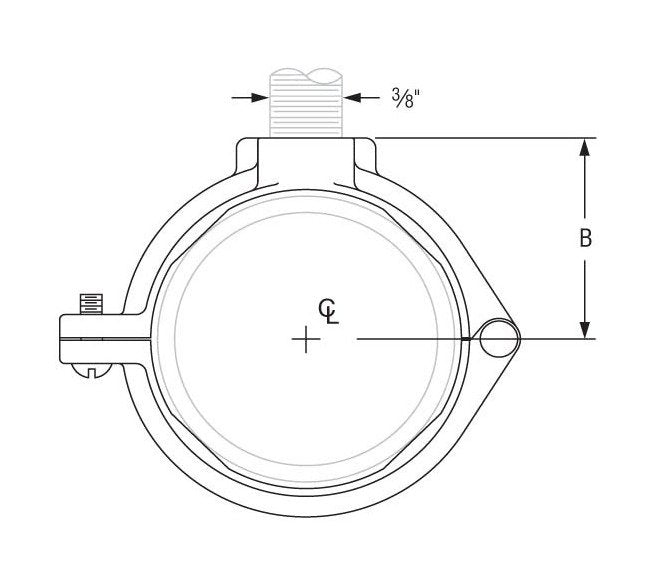

Specifications Dimension B
1 9/16 inches
Specifications Finish
Copper Plated
Specifications Material
Malleable Iron
Specifications Maximum Load
180 lbs
Specifications Tube Size
2 inches
Specifications Weight
0.36 lbs
