Rolled Copper Bar 350A with Connector Pins - 5ft
Rolled Copper Bar 350A with Connector Pins - 5ft
SKU:CRA-b43500
High-quality Rolled Copper Bar 350A with Connector Pins - efficient, durable, and compliant. Perfect for crane control systems.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Rolled Copper Bar 350A with Connector Pins - 5ft
$69.99
Quantity: 1
Claim Your Seller Account
Rolled Copper Bar 350A with Connector Pins - 5ft
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

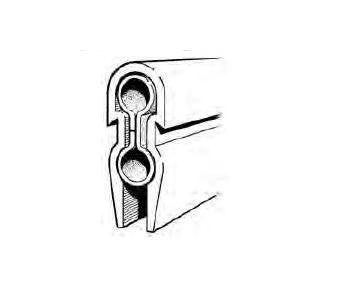

The Rolled Copper Bar 350A with Connector Pins is expertly roll-formed from high-grade copper for superior conductivity and durability. With an ampacity of 350A, low resistance, and excellent thermal performance, this conductor bar ensures efficient power transmission in crane control systems. Each bar comes pre-assembled with connector pins and features a medium heat cover for added safety. Designed with precision, it meets stringent industry standards for quality and reliability, making it an ideal choice for both consumer and institutional buyers.
Product Specifications
Electrical Data Ampacity Continuous Duty
350 A
Electrical Data Impedance Z 60hz
84 µΩ/ft
Electrical Data Reactance X 60 Hz
60 µΩ/ft
Electrical Data Resistance R For Dc At 20 C
60 µΩ/ft
Specifications Cover Type
Medium Heat
Specifications Cross Sectional Area
0.1477 in²
Specifications Expansion Coefficient
0.000009 ºF
Specifications Length
5 ft
Specifications Material
Rolled Copper
Specifications Normal Ambient
-25 to 250 ºF
Specifications Support Spacing
5 ft
Specifications Weight
3.3 lb | 0.76 lb/ft
