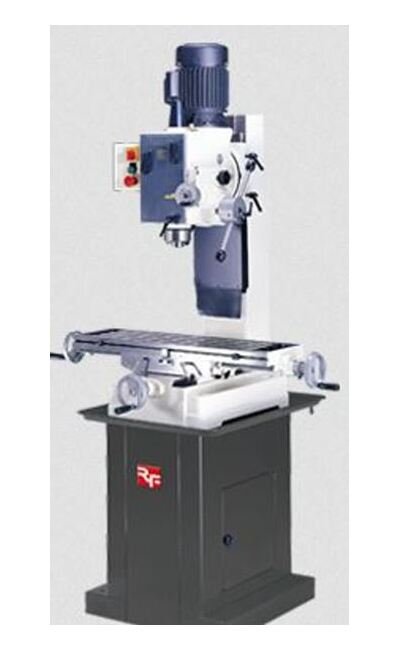

Rong Fu Geared Head Mill/Drilling Machine with Dovetail Column, Single Phase
Rong Fu Geared Head Mill/Drilling Machine with Dovetail Column, Single Phase
SKU:MIL-249718
Powerful Rong Fu Mill/Drilling Machine with Geared Head for precise cutting in industrial operations.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Rong Fu Geared Head Mill/Drilling Machine with Dovetail Column, Single Phase
$5,899.99
Quantity: 1
Claim Your Seller Account
Rong Fu Geared Head Mill/Drilling Machine with Dovetail Column, Single Phase
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rong Fu Geared Head Mill/Drilling Machine with Dovetail Column offers precision and power for milling and drilling operations. With features like a 6-speed geared head, square column with dovetail ways, and the ability to tilt 90 degrees left and right, this machine ensures efficient cutting. Equipped with a DRO system and the option for Power Table feed, it enhances accuracy and productivity. Ideal for industrial settings, this machine meets Federal procurement standards and is compliant with industry certifications.
Product Specifications
Features Features

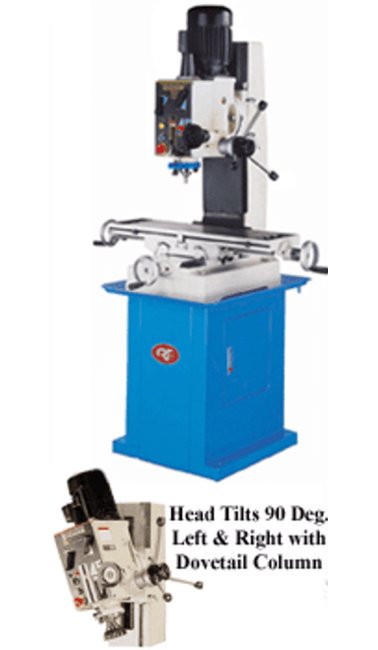

Geared Head Milling/Drilling machine.Forward and reversing switch.Full power to the cutting tool through 6 speed geared head.Square column with dovetail ways on RF-45.Head Tilts 90° Left & Right with Dovetail Column.DRO system and Power Table feed Available
Technical Specs Brands
Rong Fu
Technical Specs Capacity Mild Steel
1 to 1/4 in
Technical Specs Drilling Cast Iron
9/16 in
Technical Specs End Mill Capacity
1 to 1/4 in
Technical Specs Face Mill Capacity
4 in
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Height
68-5/8 in
Technical Specs Length
30-7/8 in
Technical Specs Maximum Distance To Table
17 to 1/2 in
Technical Specs Net Weight
726 lb
Technical Specs Quill Diameter
3 in
Technical Specs Spindle Speeds
60 to 1500 rpm
Technical Specs Spindle Stroke
5 in
Technical Specs Spindle Taper
R8
Technical Specs Swing
21 to 5/8 in
Technical Specs Table Size
32 x 9-1/2 in
Technical Specs Table T Slot Size
5/8 in
Technical Specs Vertical Spindle Motor
1 to 1/2 hp
Technical Specs Width
43-1/4 in
Technical Specs Working Table Cross Travel
9 1/2 in
Technical Specs Working Table Longitudinal Travel
20 in
