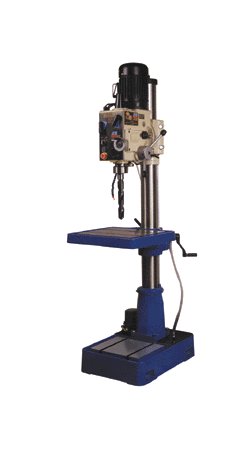

Rong Fu Heavy-Duty Geared Head Drill Press with Power Down Feed
Rong Fu Heavy-Duty Geared Head Drill Press with Power Down Feed
SKU:DRI-b2acf5
Achieve precision drilling with the Rong Fu Heavy-Duty Geared Head Drill Press. Features 3-step power down feed, coolant system, and robust construction.
Regular price
$2,699.99
Regular price
Sale price
$2,699.99
Unit price
per
Initiate Order
Rong Fu Heavy-Duty Geared Head Drill Press with Power Down Feed
$2,699.99
Quantity: 1
Claim Your Seller Account
Rong Fu Heavy-Duty Geared Head Drill Press with Power Down Feed
$2,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rong Fu Heavy-Duty Geared Head Drill Press with Power Down Feed is a robust and efficient drilling solution designed for precision and reliability. With a power down feed control offering three step feeds, a coolant system, and heavy-duty taper roller bearings, this drill press ensures smooth and accurate drilling operations. Its versatile features include a 360-degree rotating head, 90-degree left tilt, 30-degree right tilt, and a sturdy 3-inch diameter quill for enhanced rigidity. The gear drive operates in an oil bath, ensuring efficiency, quiet performance, and long-term durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Spindle power down feed by 3 step feeds: 0.01mm - 0.18mm - 0.26mm per/r.p.m.Coolant system.Spindle is equipped with four heavy duty taper roller bearings.Forward and reverse switch.Head rotates 360ú and tilts 90ú left and 30ú right.Elevator head stock moved by rack.Massive 3" diameter quill provides rigidity during operations.Gear drive operating in oil bath provides maximum efficiency smooth, quiet operation & long life.
Technical Specs 3 Step Power Down Feed
0.12 to 0.18 to 0.25 rpm
Technical Specs Brands
Rong
Technical Specs Center Distance Between T Slot
6-1/2 in
Technical Specs Column Diameter
4.5 in
Technical Specs Cooling Pump
1/8 hp
Technical Specs Drilling Capacity Cast Iron
2 in
Technical Specs Maximum Distance Spindle Nose To Base
30.6 in
Technical Specs Maximum Distance Spindle Nose To Table
54.6 in
Technical Specs Motor 2 Speed
1-1/2 hp | 3
Technical Specs Number Of Spindle Speeds
60 to 3000 rpm
Technical Specs Overall Height
90.5 in
Technical Specs Spindle Travel
5.5 in
Technical Specs Swing
20.8 in
Technical Specs Table Work Surface
21-1/4 x 18-1/2 in
Technical Specs T Slot Size At 3
5/8 in
Technical Specs Weight
615 lb | 685 lb
