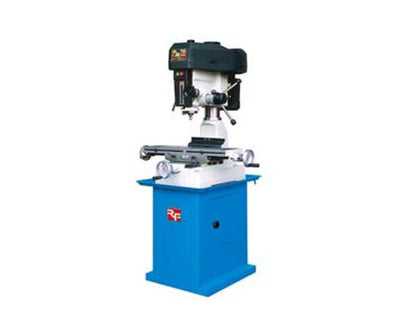

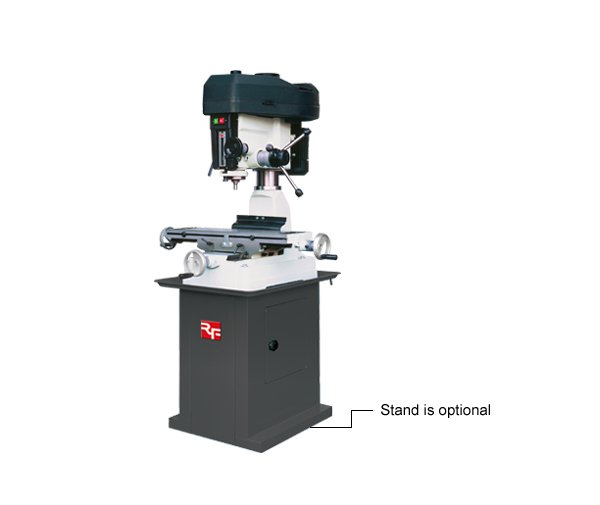

Rong Fu Milling/Drilling Machine R-8 Spindle - Industrial Grade
Rong Fu Milling/Drilling Machine R-8 Spindle - Industrial Grade
SKU:MIL-c7bd99
High-performance Rong Fu Milling/Drilling Machine with R-8 Spindle for precise industrial operations.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Rong Fu Milling/Drilling Machine R-8 Spindle - Industrial Grade
$3,499.99
Quantity: 1
Claim Your Seller Account
Rong Fu Milling/Drilling Machine R-8 Spindle - Industrial Grade
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rong Fu Milling/Drilling Machine with R-8 Spindle is a robust industrial tool designed for precision drilling and milling operations. Featuring a sturdy construction and UL listed electronics, it ensures reliable performance in demanding work environments. The R-8 spindle taper, along with a variety of included accessories like face mill, drill press vise, and chuck, enhances versatility and productivity. With features like a large worktable, convenient speed changing, and positive depth gauge, this machine offers efficiency and accuracy for various machining tasks. Whether in manufacturing facilities or research institutions, this machine meets the stringent standards of industrial procurement requirements.
Product Specifications
Features Features
UL listed electronicsExtra large worktableHinged belt cover allows faster speed changingForward and reversing switchR-8 spindle taperPositive and easy to read internal depth gaugeMagnetic contractorsSupplied with face mill,drill press vise and chuck
Technical Specs Base Length
15 3/4 in
Technical Specs Base Width
23 3/4 in
Technical Specs Brands
Rong Fu
Technical Specs Column Diameter
4-1/2 in
Technical Specs Cross Travel Y Axis
7 in
Technical Specs Distance From Spindle Nose To Table
18 in
Technical Specs Drilling Capacity
1 1/4 in
Technical Specs End Mill Capacity
3/4 in
Technical Specs Face Mill Capacity
3 in
Technical Specs Head Swivel
360 º
Technical Specs Length
42 1/2 in
Technical Specs Maximum Table Travel
19 3/4 in
Technical Specs Net Weight
660 lb
Technical Specs Number Of Spindle Speeds
24
Technical Specs Quill Diameter
3 in
Technical Specs Spindle Speeds
150 to 3000 rpm
Technical Specs Spindle Speeds Type
2 Speed
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
5 in
Technical Specs Swing
16 3/8 in
Technical Specs Table T Slot Size
5/8 in
Technical Specs Width
39 3/4 in
Technical Specs Working Surface
8 1/4 x 28 3/4 in
