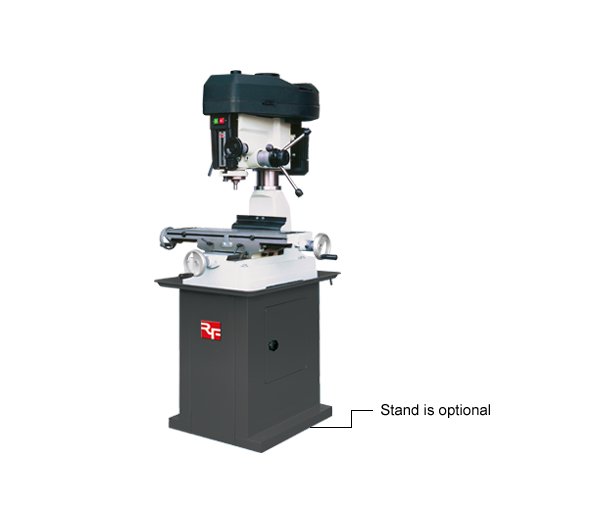

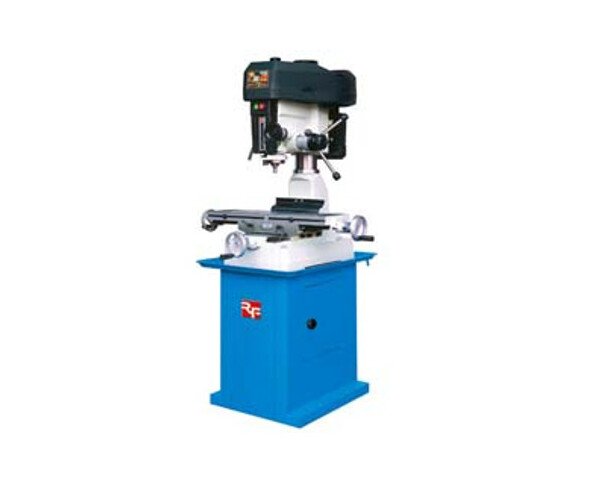

Rong Fu Milling/Drilling Machine - R8 Spindle, UL Listed
Rong Fu Milling/Drilling Machine - R8 Spindle, UL Listed
SKU:MIL-dbc6dd
Powerful R8 Spindle Milling/Drilling Machine with UL Listed electronics, ideal for precision industrial tasks.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
Rong Fu Milling/Drilling Machine - R8 Spindle, UL Listed
$3,999.99
Quantity: 1
Claim Your Seller Account
Rong Fu Milling/Drilling Machine - R8 Spindle, UL Listed
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Rong Fu Milling/Drilling Machine with R8 Spindle is a robust industrial-grade tool built to meet the demanding needs of both commercial and institutional settings. With a 360º head swivel and a single-speed spindle capable of speeds ranging from 150 to 3000 rpm, precision drilling and milling tasks are executed efficiently. This machine features a 5/8-inch table T-slot size, a 7-inch cross travel Y-axis, and comes equipped with UL-listed electronics for enhanced safety. The machine's easy-to-read internal depth gauge, hinged belt cover for quick speed adjustments, and included face mill and drill press vise make it a versatile asset for workshops, labs, and industrial facilities alike.
Product Specifications
Features Features
UL listed electronicsExtra large worktableHinged belt cover allows faster speed changingForward and reversing switchR-8 spindle taperPositive and easy to read internal depth gaugeMagnetic contractorsSupplied with face mill,drill press vise and chuck
Technical Specs Base Length
15 3/4 in
Technical Specs Base Width
23 3/4 in
Technical Specs Brands
Rong Fu
Technical Specs Column Diameter
4-1/2 in
Technical Specs Cross Travel Y Axis
7 in
Technical Specs Distance From Spindle Nose To Table
18 in
Technical Specs Drilling Capacity
1 1/4 in
Technical Specs End Mill Capacity
3/4 in
Technical Specs Face Mill Capacity
3 in
Technical Specs Head Swivel
360 º
Technical Specs Length
42 1/2 in
Technical Specs Maximum Table Travel
19 3/4 in
Technical Specs Net Weight
660 lb
Technical Specs Number Of Spindle Speeds
12
Technical Specs Quill Diameter
3 in
Technical Specs Spindle Speeds
150 to 3000 rpm
Technical Specs Spindle Speeds Type
Single Speed
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
5 in
Technical Specs Swing
16 3/8 in
Technical Specs Table T Slot Size
5/8 in
Technical Specs Width
39 3/4 in
Technical Specs Working Surface
8 1/4 x 28 3/4 in
