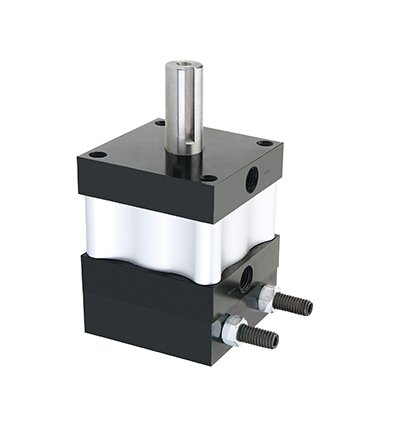

Rotary Vane Actuator - 45° Rotation, 1000 in∙lb Torque
Rotary Vane Actuator - 45° Rotation, 1000 in∙lb Torque
SKU:ROT-a9fc57
Premium Rotary Vane Actuator with 45° Rotation & 1000 in∙lb Torque
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Rotary Vane Actuator - 45° Rotation, 1000 in∙lb Torque
$899.99
Quantity: 1
Claim Your Seller Account
Rotary Vane Actuator - 45° Rotation, 1000 in∙lb Torque
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Turn-Act Rotary Vane Actuator offers precise rotation with a 45° angle and a robust maximum torque of 1000 in∙lb. Featuring a single shaft design, aluminum body construction, and patented urethane seals, this actuator ensures zero backlash, precise repeatability, and continuous full torque throughout the rotation. With options for stop cushioning and position feedback, it provides versatility and reliability for various industrial applications. This actuator is compliant with Federal/DoD procurement standards, GSA requirements, and FAR compliance factors, making it an ideal choice for institutional buyers seeking quality and performance.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)16 base Comp-Act®'s with torque outputs from 87 in.lbs to 1000 in.lbs.Rotations 45, 90,180 & 270 degreesOne moving part providing:Zero BacklashNo loss of motion.Precise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceOptions and modifications to fit your application
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
10.38 in
Specifications Maximum Torque
1000 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
3.03 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
45 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
1.75 in
Specifications Shaft Or Table Diameter
0.75 in
Specifications Standard
english_2_1_2
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
