Round Flange Panel Connector for High Voltage Applications

Name: Round Flange Panel Connector for High Voltage Applications
Brand: Teledyne Reynolds
SKU: HIG-a9d7f7
Price: 29.99 USD
Availability: OutOfStock

SKU:HIG-a9d7f7

Reliable Round Flange Panel Connector for High Voltage Applications

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Round Flange Panel Connector from the Series 31, 310, and 311 Coaxial Connectors line offers a reliable solution for high voltage applications. With a Sea Level Rating, current rating of 10 Amp, and operating temperature range of -40 to 85°C, this connector ensures stable performance in demanding environments. Featuring a brass coupling nut with gold plating and brass contacts, it guarantees secure connections. Designed with a bayonet-style coupling and a voltage rating of 6.5 kVDC, this connector is ideal for institutional and government settings requiring durable and high-quality components.

Product Specifications

Body Properties Coupling Nut Finish

Gold Plated

Body Properties Coupling Nut Material

Brass

Contact Properties Contact Material

Brass

Specifications Altitudereduced Pressure Rating

Sea Level

Specifications Assembly Type

Receptacle Bag Assembly

Specifications Coupling Style

Bayonet

Specifications Current Rating

10 Amp

Specifications Export Classification

TBD

Specifications Mating Compatibility

Mates all Series 311 Cond. 1 receptacles and adaptors.

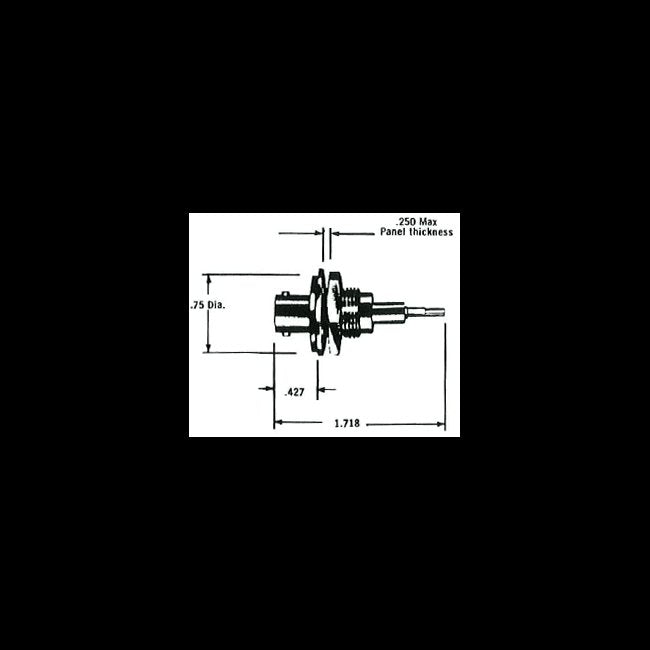

Specifications Mounting Notes

Allow clearance for 1/2-28 UNEF thread

Specifications Operating Temperature

-40 to 85 ÂºC

Specifications Polarization

Cond. 1

Specifications Rohs Compliant

TBD

Specifications Sealed Receptacle

Specifications Series

Specifications Standardnon Standard

Non-standard Part

Specifications Test Voltage

7.5 kVDC for 15 sec.

Specifications Voltage Rating

6.5 kVDC

Round Flange Panel Connector for High Voltage Applications
