Round Negative Turning Blank with Chipbreaker and Hole, 0.318-0.328 in Thickness
Round Negative Turning Blank with Chipbreaker and Hole, 0.318-0.328 in Thickness
SKU:TUR-1e6b0b
High-quality Round Negative Turning Blank, 0.318-0.328 in thickness, designed for precision turning applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Round Negative Turning Blank with Chipbreaker and Hole, 0.318-0.328 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Round Negative Turning Blank with Chipbreaker and Hole, 0.318-0.328 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

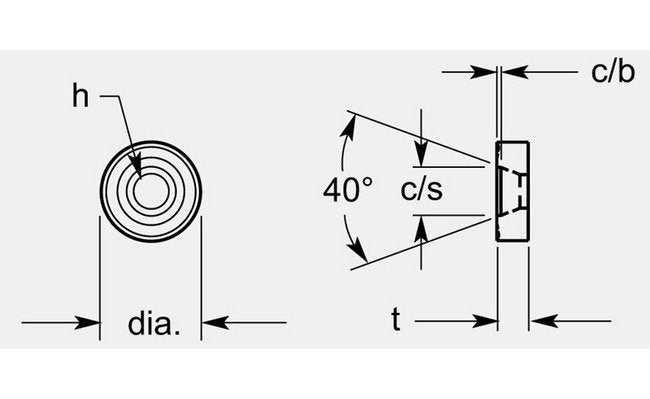

The Round Negative Turning Blank offers precise dimensions of 0.318-0.328 inches in thickness, with a 40-degree angle, a hole diameter of 0.299-0.305 inches, and a C/S ratio of 0.432-0.438 inches. Its chipbreaker width ranges from 0.037-0.043 inches, and the diameter is 0.995-1.005 inches. This blank is crafted to meet the highest standards of quality and precision, making it an ideal choice for turning applications requiring accuracy and performance.
Product Specifications
Dimensional Specification Angle A
40 º
Dimensional Specification Cb
0.037 / 0.043 in
Dimensional Specification Cs
0.432 / 0.438 in
Dimensional Specification Dia
0.995 / 1.005 in
Dimensional Specification Hole
0.299 / 0.305 in
Dimensional Specification Thickness T
0.318 / 0.328 in
Grade Availability Grade Availability
Available on Request
