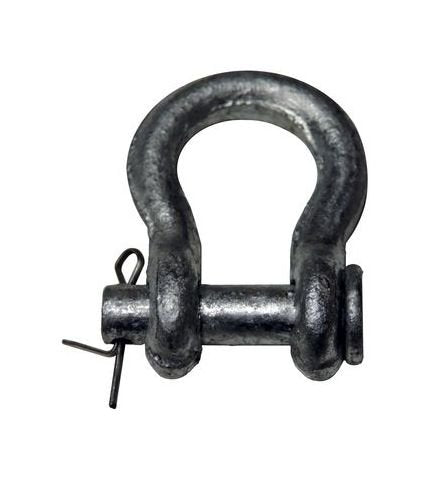

Round Pin Anchor Shackles, Hot Dip Galvanized, 5/8" - 3 1/4 Ton WLL
Round Pin Anchor Shackles, Hot Dip Galvanized, 5/8" - 3 1/4 Ton WLL
SKU:WIR-7e650a
Rugged Round Pin Anchor Shackles for heavy lifting needs. Meets Federal Spec RR-C-271D standards.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Round Pin Anchor Shackles, Hot Dip Galvanized, 5/8" - 3 1/4 Ton WLL
$25.99
Quantity: 1
Claim Your Seller Account
Round Pin Anchor Shackles, Hot Dip Galvanized, 5/8" - 3 1/4 Ton WLL
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet demanding lifting needs with our Round Pin Anchor Shackles. These shackles conform to Federal Specification RR-C-271D, Type IV A, Grade A, Class 1 standards. Crafted from quenched and tempered steel with an alloy pin, these shackles offer a 2.2x proof load and 6x ultimate load. Ideal for wire rope loops, these shackles are reliable and durable tools for lifting and towing tasks.

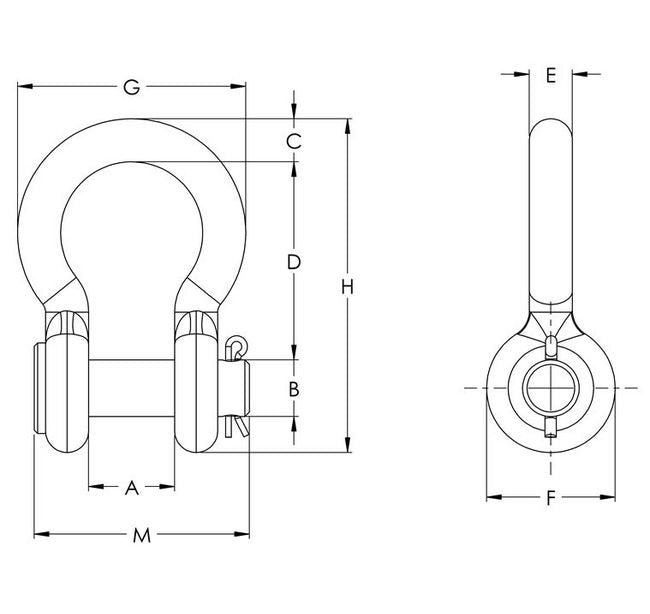

Product Specifications
Specifications A In
1.06
Specifications B In
0.75
Specifications C In
0.62
Specifications D In
2.38
Specifications E In
0.63
Specifications F In
1.5
Specifications G In
2.94
Specifications H In
4.19
Specifications M In
3.34
Specifications Nominal Size In
5/8
Specifications Weight Lbs
1.5
Specifications Wll Tons
3 1/4
CAGE
0T9L4
NAICS
332999
PSC
5340
