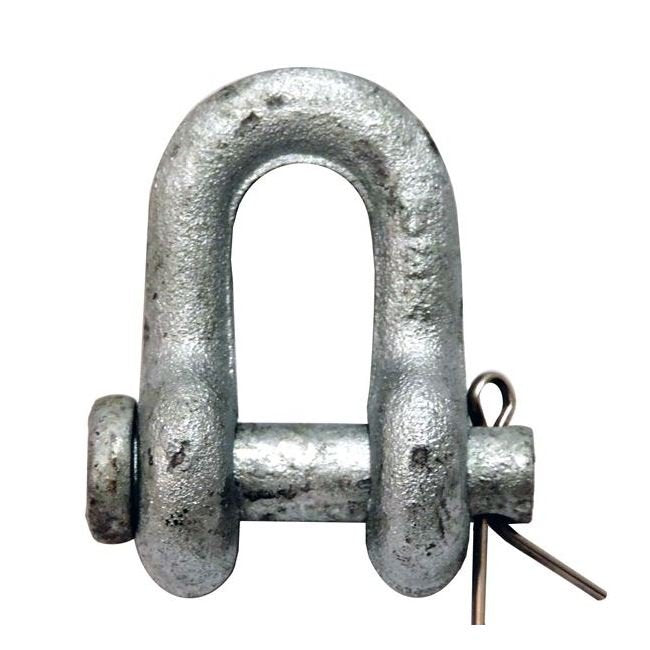

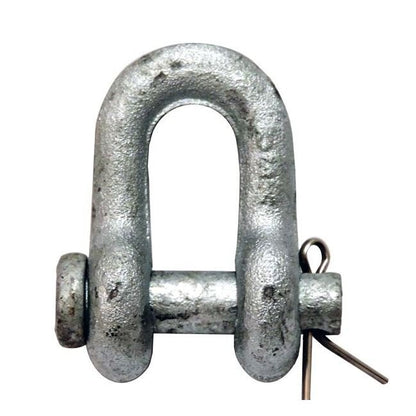

Round Pin Hot Dip Galvanized Chain Shackles - 7/8" - 6.5 Ton WLL

Round Pin Hot Dip Galvanized Chain Shackles - 7/8" - 6.5 Ton WLL

SKU:WIR-5a6a7f

Meet Federal Spec RR-C-271D standards with our reliable Round Pin Hot Dip Galvanized Chain Shackles - 7/8" - 6.5 Ton WLL.

Regular price $65.99
Regular price Sale price $65.99
Sale

Initiate Order

Round Pin Hot Dip Galvanized Chain Shackles - 7/8" - 6.5 Ton WLL

Round Pin Hot Dip Galvanized Chain Shackles - 7/8" - 6.5 Ton WLL

$65.99

Quantity: 1

Claim Your Seller Account

Round Pin Hot Dip Galvanized Chain Shackles - 7/8" - 6.5 Ton WLL

Round Pin Hot Dip Galvanized Chain Shackles - 7/8" - 6.5 Ton WLL

$65.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our Round Pin Hot Dip Galvanized Chain Shackles are designed to meet the stringent Federal Specification RR-C-271D, Type IVB, Grade A, Class 1 standards. With an ultimate load capacity of 6 times the working load limit and a proof load of 2.2 times the working load limit, these shackles offer superior strength and durability. The quenched and tempered alloy pin ensures reliable performance in lifting and towing applications. Trust in these shackles for safe and efficient wire rope operations.

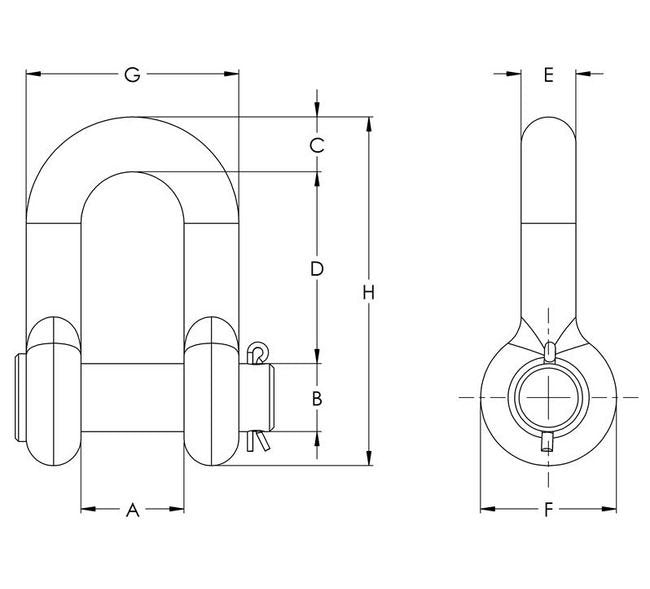

Product Specifications

Specifications A In
1.44
Specifications B In
1
Specifications C In
0.97
Specifications D In
2.81
Specifications E In
0.88
Specifications F In
2.09
Specifications G In
3.19
Specifications H In
5.33
Specifications M In
4.5
Specifications Nominal Size In
7/8
Specifications Weight Lbs
3.28
Specifications Wll Tons
6.5
CAGE
0T9L4
NAICS
332999
PSC
5340
