RSC 2800 Series Digital Shaft Rotary Position Sensors
RSC 2800 Series Digital Shaft Rotary Position Sensors
SKU:RSC-dabd8d
Enhance precision with the RSC 2800 Series Digital Shaft Rotary Position Sensors. Achieve ±1º accuracy, IP67 protection, and high EMC tolerance for reliable performance.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
RSC 2800 Series Digital Shaft Rotary Position Sensors
$199.99
Quantity: 1
Claim Your Seller Account
RSC 2800 Series Digital Shaft Rotary Position Sensors
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your precision measurement processes with the RSC 2800 Series Digital Shaft Rotary Position Sensors. Featuring innovative non-contact magnetic technology and a durable stainless steel shaft, these sensors offer impeccable accuracy to ±1º, high EMC tolerance, and a broad operating temperature range of -40 to +125ºC. With protection classes up to IP67 and SSI, SPI, and Incremental output options, these sensors ensure reliable performance in various environments. Ideal for industrial applications requiring exceptional linearity, these sensors guarantee long-lasting, hysteresis-free operation.
Product Specifications
Specifications Approximate Weight
50 g
Specifications Bearings
Bronze sleeve bearing
Specifications Continuous Mechanical Travel
360 º
Specifications Cross Section Cable
24 AWG | 0.25 mm²
Specifications Dc Supply Voltage Ub
5 V
Specifications Dynamic Permitted Shaft Loading Axial And Radial
20 N
Specifications Electrical Connection
302: Round cable 5-pol. 1 m (0.14mm²; shielded) SPI | 432: Round cable 8-pol. 1 m (0.25 mm²; shielded) SSI INC | Cable versions and assembled connectors on request. | Shielded Cable, AWG 24 (0.25 mm²) SSI, INC | Shielded cable, AWG 26 (0.14 mm²) SPI
Specifications Emc Compatibility
EN 55011/EN 55022/A1 Radiated disturbances class B | EN 61000-4-2 electrostatic discharges (ESD) 4kV, 8kV | EN 61000-4-3 electromagnetic elds 10V/m | EN 61000-4-4 electrical fast transients (Burst)1kV | EN 61000-4-6 conducted disturbances, induced by RF elds 10 V/m e .
Specifications Encoding
Gray code
Specifications Functional Safety
If you need assistance in using our products in safety-related systems, please contact us.
Specifications Housing Material
High grade | Temperature resistant plastic
Specifications Hysteresis
Standard 0.7º
Specifications Inputs
RS422 compatible, CLK lines electrically isolated via optocouplers
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Interface
4: Synchronous-Serial Interface (SSI) | 5: Incremental Interface A / B / Z | 8: SPI Interface

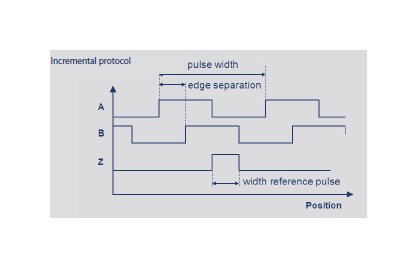

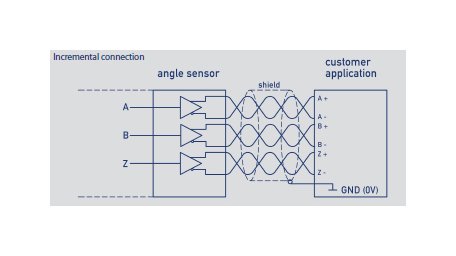

Specifications Interface Parameter For Incremental Interface
15: 5 V (4.5 to 5.5 V) supply, output RS422 comp., rising cw | Absolute position at Power On (Power on burst) | On request: high side and low side outputs | UVW signals instead of ABZ signals for motor commutation
Specifications Interface Parameter For Spi Interface
31: 5 V (4.5 V to 5.5 V) supply, Binary code, rising cw

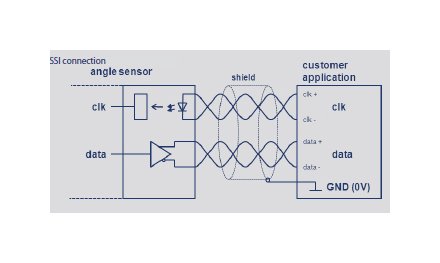

Specifications Interface Parameter For Ssi Interface
11: 5 V (4.5 to 5.5 V) supply, output RS422 comp., Gray code, rising cw | 12: 5 V (4.5 to 5.5 V) supply, output RS422 comp., Gray code, rising ccw
Specifications Length Z Pulse
Distance between 2 edges A / B
Specifications Level
RS-422 | TTL Compatible
Specifications Life
> 50 x 106 Movements
Specifications Maximum Clock Rate
1 MHz | 400 MHz
Specifications Maximum Operational Speed
800 rpm
Specifications Mean Time To Failure Mttf
148 Years | 246 Years | 316 Years
Specifications Measuring Range
360 º

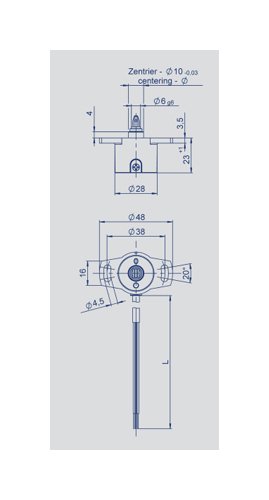

Specifications Mechanical Version
2802: 6 mm-shaft with attening; IP54 | 2832: 6 mm-shaft with attening; IP65 | 2862: 6 mm-shaft with attening; IP67 | 2821: push-on-coupling; IP54 | 2841: push-on-coupling; IP65 | 2871: push-on-coupling; IP67
Specifications Model
2: Digital Interface
Specifications Monoflop Time Tm
16 µs
Specifications Mounting
With 2 screws M4 and washer
Specifications Ohmic Load At Outputs
> 120 per channel A / B / Z | = 120 O
Specifications Outputs
A- | A+ | B- | B+ | Z- | Z+
Specifications Protection Class Din En 60529
IP54 | IP65 | IP67

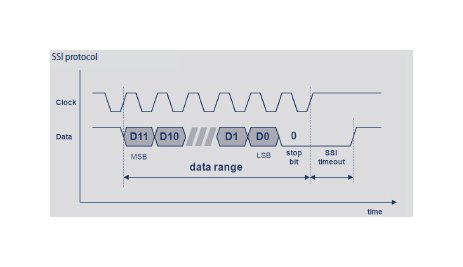

Specifications Protocol
SPI | SSI 13 bit (12 bit data + 1 stop bit)
Specifications Repeatability
0.1 º
Specifications Resolution Across 360
12 bits | 14 bits
Specifications Resolution Across 360 With 4 Times Interpolation
12 bits
Specifications Resolution Incremental Interface
09: 128 ppr - 512 increments resolution (at 4-fold interpolation) | 10: 256 ppr - 1024 increments resolution (at 4-fold interpolation) | 11: 512 ppr - 2048 increments resolution (at 4-fold interpolation) | 12: 1024 ppr - 4096 increments resolution (at 4-fold interpolation) | other resolutions on request
Specifications Resolution Spi Interface
14: SPI 14 bit
Specifications Resolution Ssi Interface
12: 12 bit - 4096 steps | other resolutions on request
Specifications Reverse Voltage
Yes, Supply lines
