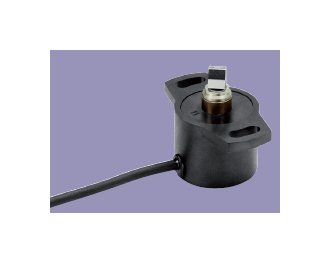

The RSC2800 Series Analog Shaft Rotary Position Sensors by Novotechnik offer precision and reliability for diverse applications. These sensors feature non-contacting technology, programmable angle span, and high EMC tolerance, providing accurate measurements with an accuracy of ±1º. With a temperature range of -40 to +125 ºC and protection classes ranging from IP54 to IP67, these sensors ensure durability in various environments. The sensors are available with different shaft designs and output signals, catering to specific user requirements. Explore the RSC2800 Series for advanced shaft-type rotary sensors that meet stringent industry standards.
Product Specifications
Specifications Approximate Weight
50 g
Specifications Bearings
Bronze sleeve bearing
Specifications Continuous Mechanical Travel
360 º
Specifications Cross Section Cable
26 AWG | 0.14 mm²
Specifications Dc Output Signal Load 10 Ko
0.1 to 10 V
Specifications Dc Supply Voltage Ub
5 V | 24 V
Specifications Dimensions
RSC2800 Series Analog Shaft Type Rotary Position Sensors 2
Specifications Dynamic Permitted Shaft Loading Axial And Radial
20 N
Specifications Electrical Connection
201: round cable 4-conductor, 0.5 m shielded 202: round cable 4-conductor, 1 m shielded | 206: round cable 4-conductor, 3 m shielded | 210: round cable 4-conductor, 5 m shielded | 501: connector M12 with round cable, L = 0.15 m, shielded | Cable versions and assembled connectors on request | Shielded Cable AWG 26 (0.14 mm²) with Optional M12 Connector | 220: round cable 4-conductor, 10 m shielded
Specifications Emc Compatibility
EN 55011/EN 55022/A1 Radiated disturbances class B | EN 61000-4-2 electrostatic discharges (ESD) 4 kV, 8 kV | EN 61000-4-3 electromagnetic fields 10 V/m | EN 61000-4-4 electrical fast transients (burst) 1 kV | EN 61000-4-6 conducted disturbances, induced by RF fields 10 V/m eff. | EN 61000-4-8 power frequency magnetic fields 3 A/m
Specifications Functional Safety
When using our products in safety-related systems, please contact us
Specifications Housing Material
High grade | Temperature resistant plastic
Specifications Hysteresis
< 0.1 º
Specifications Independent Linearity Fs
= 0.5 %
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Life
> 50x106 g Movements
Specifications Maximum Operational Speed
800 min-1 (120, if T > 85º C)
Specifications Mean Time To Failure Mttf
105 Years | 107 Years | 210 (per channel) partly redundant Years | 356 (single) Years | 388 (per channel) fully redundant Years
Specifications Measuring Range
12 | 18 | 24 | 36 | 6

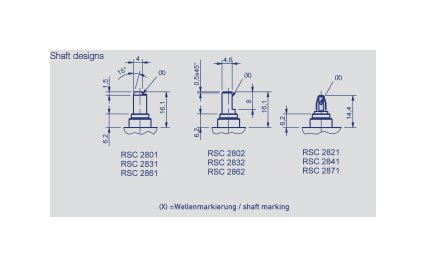

Specifications Mechanical Version
2801: 6 mm shaft with marking, IP54 | 2861: 6 mm shaft with marking, IP67 | 2802: 6 mm shaft with flattening, IP54 | 2832: 6 mm shaft with flattening, IP65 | 2862: 6 mm shaft with flattening, IP67 | 2821: push-on coupling, IP54 | 2841: push-on coupling, IP65 | 2871: push-on coupling, IP67 | Other shaft designs on request | 2831: 6 mm, shaft with marking, IP65
Specifications Mounting
2 screws M4 and washer

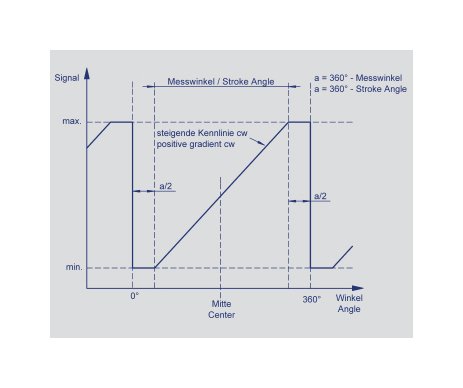

Specifications Output Characteristics

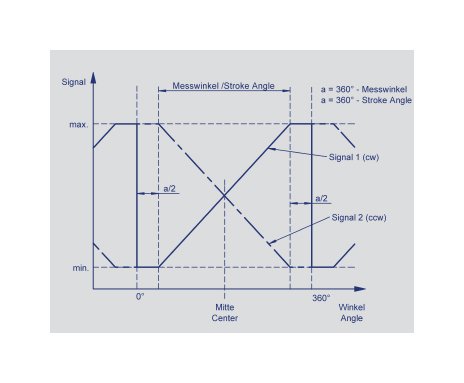

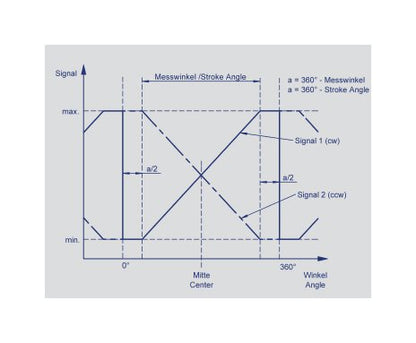

Crossed output channel 1 rising / channel 2 falling CW (Supply = +5 V only) | Other characteristics on request | Rising ccw | Rising cw
Specifications Output Signal For 24 Volts Supply
0.1 to 10 V | 4 to 20 mA
Specifications Output Signal For 5 Volts Supply
0.25 to 4.75 V ratiometric to Ub | 0.5 to 4.5 V ratiometric to Ub
Specifications Output Signal Load 1 Ko
0.25 to 4.75 VDC | 0.5 to 4.5 VDC | Ratiometric to supply voltage
Specifications Output Signal Load Minimum 500 O
4 to 20 mA
Specifications Protection Class Din En 60529
IP54 / IP65 / IP67
Specifications Repeatability
0.1 º
Specifications Resolution
12 bits
Specifications Reverse Voltage
Yes, Supply lines
Specifications Series
RSC
Specifications Shaft
Stainless Steel
Specifications Shock
50 g | 6 ms
Specifications Short Circuit Protection
yes (vs. GND and supply)
Specifications Special Features
Non-contacting technology | Angular range from 30º to full 360º | Internal resolution 12 bit | Independent linearity ±0.5 % | Protection class IP54, IP65, IP67 | Long life | Very small hysteresis | Single output and redundant versions | Available with push-on coupling or marked shaft | Simple mounting | Digital interface versions - see separate data sheet
Specifications Starting Torque Of Mounting Screws With Washer At
180 N·cm
Specifications Static Permitted Shaft Loading Axial And Radial
20 N
Specifications Supply Voltage
24 V | 5 V
Specifications Temperature Error At Measuring Range 180 Up To 36
0.31 % | 0.5 %
Specifications Temperature Error At Measuring Range 30 Up To 170
0.625 % | 0.94 %
