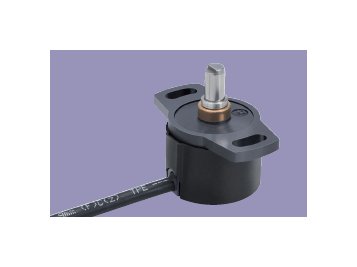

The RSM 2800 Series Analog Multi-Turn Rotary Position Sensors by Novotechnik offer unparalleled precision and durability for industrial applications. With a range of 2 to 16 turns (720 to 5760º), these non-contacting magnetic encoders provide up to 16-bit resolution and maintain position detection even when not powered. Featuring a robust design with IP54, IP65, or IP67 protection class, stainless steel shaft, and high-grade housing material, these sensors ensure reliable performance in harsh environments. Ideal for governmental and institutional procurement, these sensors meet stringent quality standards and offer continuous analog output, easy mounting, and exceptional linearity of up to ±0.03%.
Product Specifications
Specifications Approximate Weight
50 g
Specifications Approximate Wire Diameter
0.14 mm²
Specifications Bearings
Bronze sleeve bearing
Specifications Continuous Mechanical Travel
360 º
Specifications Dc Supply Voltage Ub
5 V | 24 V
Specifications Dynamic Permitted Shaft Loading Axial And Radial
20 N

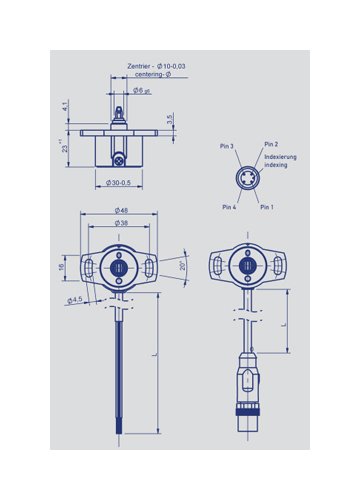

Specifications Electrical Connection
201: Round cable 4-pol., shielded, L = 0.5 m | 202: Round cable 4-pol., shielded, L = 1 m | 206: Round cable 4-pol., shielded, L = 3 m | 210: Round cable 4-pol., shielded, L = 5 m | 220: Round cable 4-pol., shielded, L = 10 m | 501: M12 x 1 connector shielded, straight; L = 150 mm | Other cable lengths and assembled connectors on request | Shielded cable | 4 x AWG 26 | M12 connector with short cable
Specifications Emc Compatibility
EN 55011/EN 55022/A1 Radiated disturbances class B | EN 61000-4-2 electrostatic discharges (ESD) 4kV, 8kV | EN 61000-4-3 electromagnetic fields 10V/m | EN 61000-4-4 electrical fast transient / burst 1kV | EN 61000-4-6 conducted disturbances, induced by RF fields 10V/m eff. | EN 61000-4-8 power frequency magnetic fields 3A/m
Specifications Functional Safety
When using our products in safety-related systems, please contact us
Specifications Housing Material
High grade | Temperature resistant plastic
Specifications Hysteresis
< 0.1 %
Specifications Independent Linearity
0.031 to 0.25 %
Specifications Insensibility Against Magnetic Dc Fields
< 15 mT
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Life
> 50x106 Movements
Specifications Linearity Measuring Range
2 turns | 3 turns | 4 turns | 5 turns | 6 turns | 7 turns | 8 turns | 9 turns | 10 turns | 11 turns | 12 turns | 13 turns | 14 turns | 15 turns | 16 turns
Specifications Linearity Type
0.031 % | 0.033 % | 0.036 % | 0.039 % | 0.042 % | 0.045 % | 0.050 % | 0.056 % | 0.063 % | 0.071 % | 0.083 % | 0.100 % | 0.125 % | 0.167 % | 0.250 %
Specifications Maximum Linearity
0.131 % | 0.133 % | 0.136 % | 0.138 % | 0.142 % | 0.145 % | 0.150 % | 0.156 % | 0.163 % | 0.171 % | 0.183 % | 0.220 % | 0.225 % | 0.267 % | 0.350 %
Specifications Maximum Response Time
2 ms
Specifications Mean Time To Failure Mttf
175 Single Years | 184 Single Years
Specifications Measuring Range
0 to 5760 º | 0 to 720 º

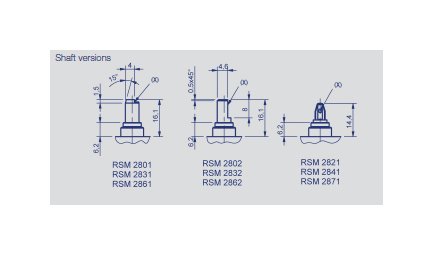

Specifications Mechanical Version
2801: 6 mm shaft with marking, IP54 | 2861: 6 mm shaft with marking, IP67 | 2802: 6 mm shaft with flattening, IP54 | 2832: 6 mm shaft with flattening, IP65 | 2862: 6 mm shaft with flattening, IP67 | 2821: push-on coupling, IP54 | 2831: 6 mm shaft with marking, IP65 | 2841: push-on-coupling, IP65 | 2871: push-on-coupling, IP67 | other shaft versions on request
Specifications Mounting
2 fillister head screws M4 and washer
Specifications Number Of Channels
1 | 1/2
Specifications Number Of Turns Output Characteristics
003 | 006 | 010 | 016

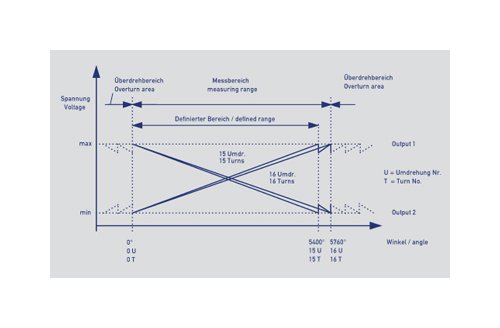

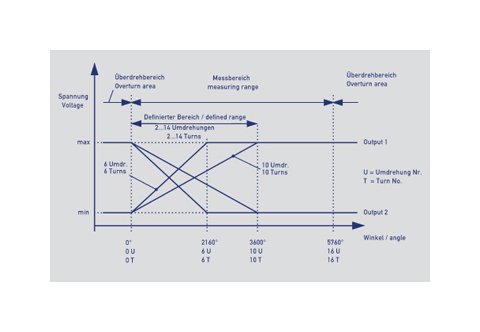

Specifications Output Configuration
2 crossed outputs, Ch1 rising CW, Ch2 rising CCW | Rising curve CCW | Rising curve CW
Specifications Output Signal Ub
0.25 to 4.75 V | 0.5 to 4.5 V
Specifications Permitted Operational Speed
800 rpm
Specifications Protection Class To Din En 60529
IP54 / IP65 / IP67
Specifications Repeatability
0.1 %
Specifications Resolution
16 bits
Specifications Reverse Voltage
Yes
Specifications Shaft
Stainless Steel
Specifications Shock Iec 68000 2 27
50 g | 6 ms
Specifications Short Circuit Protection
yes (signal to Ub and ground)
Specifications Special Features
Long life | Available with push-on coupling or marked shaft | Non-contacting, magnetic | True Power On System: Counts turns even when not powered. Patented non-volatile technology does not require gears or batteries | 2 to 16 turn range (720 to 5760º) | Continuous analog output signal across the selected angle range | Resolution 16 bit | Independent linearity up to ±0.03 % | Protection class IP54, IP65 or IP67 | 1 or 2 outputs | Easy mounting | See separate data sheet for digital interfaces
Specifications Starting Torque Of Mounting Screws With Washer At
180 N·cm
Specifications Static Permitted Shaft Loading Axial And Radial
20 N
Specifications Temperature Error Of Output Signal Fs
0.15 % | 0.31 % | 0.625 %
Specifications Temperature Range
-40 to 85 º C
