RSM2800 Digital Multi-Turn Rotary Position Sensor
RSM2800 Digital Multi-Turn Rotary Position Sensor
SKU:RSM-285ab9
Cutting-edge RSM2800 Multi-Turn Rotary Position Sensor: 16 turns, 16-bit resolution, non-contacting magnetic encoder for precision measurements in industrial settings.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
RSM2800 Digital Multi-Turn Rotary Position Sensor
$199.99
Quantity: 1
Claim Your Seller Account
RSM2800 Digital Multi-Turn Rotary Position Sensor
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RSM2800 Series Digital Multi-Turn Rotary Position Sensor by Novotechnik is a cutting-edge solution designed for precision measurement needs in industrial and institutional settings. Offering up to 16 turns with unrivaled 16-bit resolution, this non-contacting magnetic encoder ensures accurate position detection even in unpowered states. With a high-grade housing material, stainless steel shaft, and bronze sleeve bearings, this sensor is built for durability and reliability. The patented True Power On System guarantees continuous turn counting without the need for gears or batteries. Ideal for applications requiring a wide operational temperature range, high mechanical robustness, and easy mounting. Discover unparalleled performance with the RSM2800 Series today.
Product Specifications
Specifications Absolute Linearity Fs
14 turns: max. 0.036 % | 16 turns: max. 0.031 %
Specifications Approximate Weight
50 g
Specifications Bearings
Bronze sleeve bearing
Specifications Continuous Mechanical Travel
360 º
Specifications Cross Section Cable
24 AWG | 0.25 mm²
Specifications Dc Supply Voltage Ub
24 V
Specifications Dynamic Permitted Shaft Loading Axial And Radial
20 N
Specifications Electrical Connection
Cable versions and assembled connectors on request. | 302: Round cable 5-pol., 1,0 m (0.14 mm2, shielded) SPI | 432: Round cable 8-pol., 1,0 m (0.25 mm2, shielded) SSI | Shielded cable, AWG 26 (0.14 mm²) SPI | Shielded cable, AWG 24 (0.25 mm²) SSI
Specifications Emc Compatibility
EN 55011/EN 55022/A1 Radiated disturbances class B | EN 61000-4-2 electrostatic discharges (ESD) 4kV, 8kV | EN 61000-4-3 electromagnetic fields 10V/m | EN 61000-4-4 electrical fast transient / burst 1kV | EN 61000-4-6 conducted disturbances, induced by RF fields 10V/m eff. | EN 61000-4-8 power frequency magnetic fields 3A/m
Specifications Encoding
Binary code | Gray code
Specifications Functional Safety
When using our produkcts in safety-related systems, please contact us
Specifications Housing Material
High grade | Temperature resistant plastic
Specifications Hysteresis
< 0.1 º
Specifications Inputs
CLK lines electrically isolated via optocouplers | RS-422 compatible
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Interface Parameters For Spi Interface
81: 5 V, SPI 16 bit, Binary code, rising cw | 82: 5 V, SPI 16 bit, Binary code, rising ccw
Specifications Interface Parameters For Ssi Interface
41: 24 V, SSI 16 bit, Gray code, rising cw | 42: 24 V, SSI 16 bit, Gray code, rising ccw | 43: 24 V, SSI 25 bit (18 bit data), Gray code, rising cw | 44: 24 V, SSI 25 bit (18 bit data), Gray code, rising ccw | 45: 24 V, SSI 16 bit, Binary code, rising cw | 46: 24 V, SSI 16 bit, Binary code, rising ccw | 47: 24 V, SSI 25 bit (18 bit data), Binary code, rising cw | 48: 24 V, SSI 25 bit (18 bit data), Binary code, rising ccw
Specifications Life
> 50x106 Movements
Specifications Maximum Clock Rate
100 kHz
Specifications Maximum Operational Speed
800 rpm
Specifications Mean Time To Failure Mttf
173
Specifications Mechanical Version

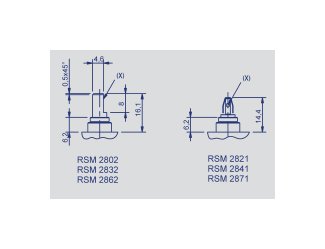

2802: 6 mm shaft with flattening, IP54 | 2832: 6 mm shaft with flattening, IP65 | 2862: 6 mm shaft with flattening, IP67 | 2821: push-on coupling, IP54 | 2841: push-on coupling, IP65 | 2871: push-on coupling, IP67 | other shaft versions on request
Specifications Model
2: Digital Interface

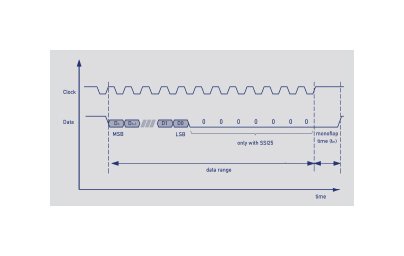

Specifications Monoflop Time Tm
20 µs

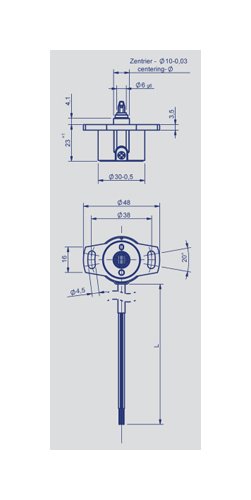

Specifications Mounting
With 2 screws M4 and washer
Specifications Number Of Turns Output Characteristics

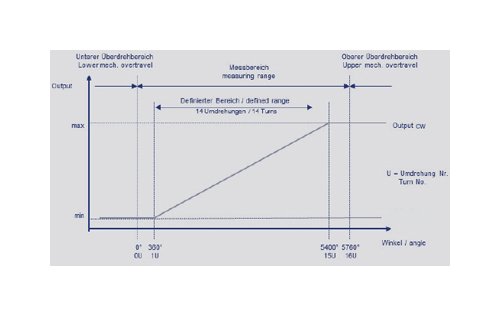

14: 14 turns, measuring range controlled | 16: 16 turns, measuring range not controlled
Specifications Protection Class To Din En 60529
IP54 / IP65 / IP67
Specifications Protocol
SSI
Specifications Repeatability
0.5 º
Specifications Resolution
16 | 18
Specifications Reverse Voltage
Yes
Specifications Shaft
Stainless Steel
Specifications Shock Iec 68000 2 27
50 g | 6 ms
Specifications Short Circuit Protection
yes (signal to Ub and ground)
Specifications Special Features
Long life | Available with push-on coupling or marked shaft | Non-contacting, magnetic | True Power On System: Counts turns even when not powered. Patented non-volatile technology does not require gears or batteries | Continuous analog output signal across the selected angle range | Protection class IP54, IP65 or IP67 | Easy mounting | 14 or 16 turn range (5040º or 5760º) | Resolution 16 /18 bit | Independent linearity up to 0.031% | See separate data sheet for analog interfaces
Specifications Starting Torque Of Mounting Screws At Housing Fla
180 N·cm
Specifications Static Permitted Shaft Loading Axial And Radial
20 N
Specifications Temperature Error
0.1 %
Specifications Temperature Range
-40 to 85 º C
Specifications Torque
0.15 (IP54) N·cm | 0.5 (IP65) N·cm | 1.0 (IP67) N·cm
