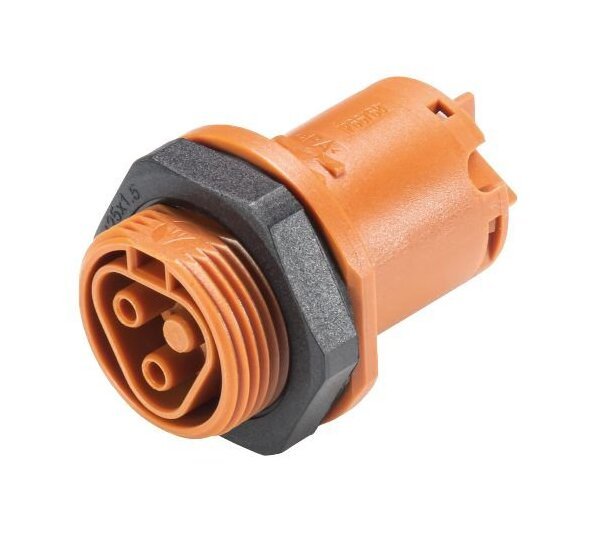

RST20I2 Female Device Connector - Signal Brown, M25 Thread Size
RST20I2 Female Device Connector - Signal Brown, M25 Thread Size
SKU:CIR-e41987
High-quality RST20I2 Female Device Connector in Signal Brown color with M25 thread size, ideal for outdoor use. 2 poles, 20A current rating, and IP69 protection for secure connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
RST20I2 Female Device Connector - Signal Brown, M25 Thread Size
$29.99
Quantity: 1
Claim Your Seller Account
RST20I2 Female Device Connector - Signal Brown, M25 Thread Size
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RST20I2 Female Device Connector in Signal Brown color, featuring a thread size of M25, is a top-of-the-line circular electrical connector designed for outdoor use. With 2 poles and a screw connection type, this connector ensures reliable and secure electrical connections. Rated for 20A current and IP69 protection according to IEC standards, it offers maximum rated voltages of 600V, meeting stringent industry requirements. Suitable for cable diameters ranging from 6 to 18mm, this connector is versatile and durable, ensuring long-term performance in diverse applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Signal Brown
General Connection Type
Screw Connection
General Connector Type
Female
General Maximum Rated Voltage
600 V
General Minimum Rated Voltage
250 V | 400 V
General Model
RST20I2 Female
General Number Of Poles
2
General Rated Current
20 A
General Rated Current Canada
15 A
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Cable Diameter
10 to 14 mm | 13 to 18 mm | 6 to 10 mm
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
