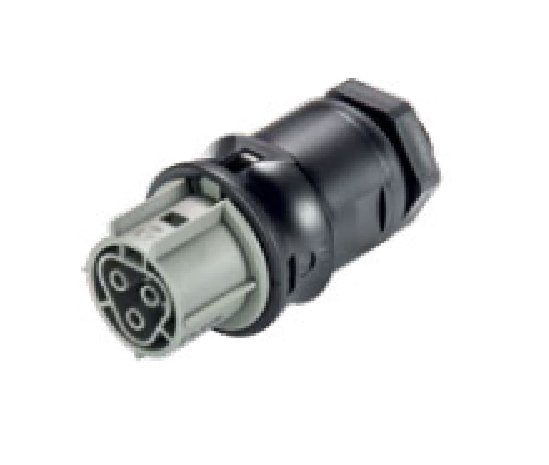

RST25I3 Female Device Connector - M20 Thread Size, Straight Angle Plug

Name: RST25I3 Female Device Connector - M20 Thread Size, Straight Angle Plug
Brand: Wieland Electric Inc.
SKU: CIR-af03ea
Price: 29.99 USD
Availability: OutOfStock

SKU:CIR-af03ea

Get reliable outdoor connectivity with the RST25I3 Female Device Connector, M20 thread size, and straight angle plug design.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The RST25I3 Female Device Connector features a screw connection with a straight angle of plug design, optimized for outdoor use. With a thread size of M20, it offers a rated current of 25A and a wide wire size compatibility. Meeting IP69 and Type 4X/6P protection standards, this connector ensures durability and reliability in challenging environments, making it ideal for outdoor electrical applications.

Product Specifications

General Angle Of Plug

Straight

General Brands

Wieland

General Color Of Codingcontact Carrier

Concrete Gray

General Connection Type

Screw Connection

General Model

RST25I3 Female

General Number Of Poles

Note Note

Technical details are subject to change

Specifications Type

Female

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X / 6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Rated Current

25 A

Technical Data Thread Size

M20

Technical Data Wire Size According To Canadian Ul Listed United

12 AWG Solid

Technical Data Wire Size According To International Electrotechn

0.75 to 6 mmÂ²
