RST25I3 Male Connector 6-10mm Cable Diameter 25A Pluggable Connector
RST25I3 Male Connector 6-10mm Cable Diameter 25A Pluggable Connector
SKU:CIR-1bc32c
Durable RST25I3 Male Connector for 6-10mm cables, 25A rating, IP69/Type 4X/6P protection
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
RST25I3 Male Connector 6-10mm Cable Diameter 25A Pluggable Connector
$29.99
Quantity: 1
Claim Your Seller Account
RST25I3 Male Connector 6-10mm Cable Diameter 25A Pluggable Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

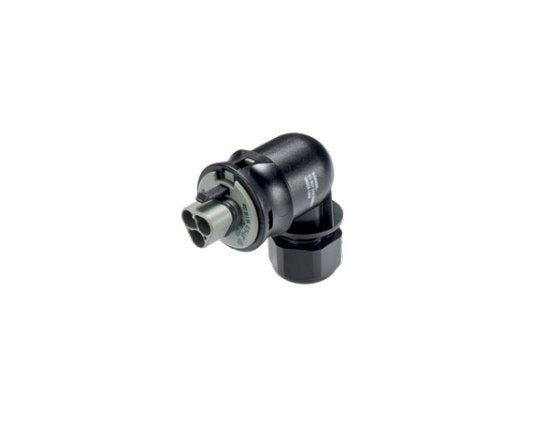

The RST25I3 Male Connector features a sturdy screw connection for reliable electrical connections. With a color-coded concrete gray contact carrier and an angled 90º plug, this connector is designed for easy installation. It supports cable diameters ranging from 6mm to 10mm and rated currents up to 25A, meeting international standards for wire sizes. Additionally, with IP69 and Type 4X/6P protection ratings, this connector ensures durability in outdoor environments and complies with stringent industry requirements.
Product Specifications
General Angle Of Plug
Angled 90º
General Brands
Wieland
General Color Of Codingcontact Carrier
Concrete Gray
General Number Of Poles
3
General Type
Male
Model Connection Type
Screw Connection
Note Note
Technical details are subject to change
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
25 A
Technical Data Wire Size According To Canadian Ul Listed United
12 AWG Solid
Technical Data Wire Size According To International Electrotechn
0.75 to 6 mm²
