RTV-793 High Thermally Conductive Silicone - Flame Retardant, RTV Rubber
RTV-793 High Thermally Conductive Silicone - Flame Retardant, RTV Rubber
SKU:RTV-88fb4c
Premium high thermal conductivity RTV silicone for commercial applications, rapid curing, odorless, and non-toxic.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
RTV-793 High Thermally Conductive Silicone - Flame Retardant, RTV Rubber
$49.99
Quantity: 1
Claim Your Seller Account
RTV-793 High Thermally Conductive Silicone - Flame Retardant, RTV Rubber
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

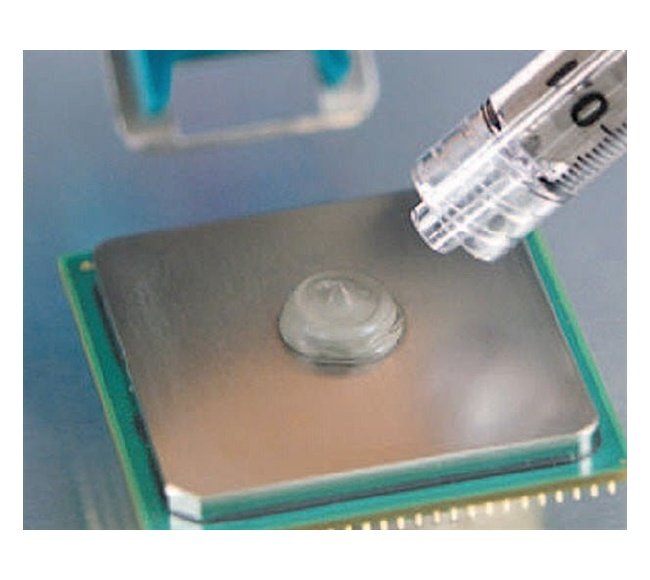

The RTV-793 High Thermally Conductive Silicone is a premium addition cure, flame retardant, RTV silicone rubber designed for applications requiring high thermal conductivity, low shrinkage, and exceptional heat resistance. This silicone is ideal for commercial potting and encapsulation with rapid curing at elevated temperatures. With excellent overall properties, odorless and non-toxic composition, this silicone is non-allergenic and does not produce any by-products. Its unique formulation ensures reliable performance in demanding environments.
Product Specifications
Cure Schedule 0
24 hours at room temperature | 4 hours at 150 °F | Pot Life and cure is dependent on temperature
Properties Coefficient Of Thermal Expansion
17 x 10-5 ºC
Properties Color
Asst. (Part A) | Clear (Part B)
Properties Dielectric Constant
450
Properties Dielectric Frequency
100 Hz
Properties Dissipation Factor
3.4
Properties Dissipation Frequency
60 Hz
Properties Mix Ratio By Volume
100:5
Properties Pot Life At 72 F
2700 min
Properties Service Temperature Range
-54 to 260 ºC
Properties Tear Strength Die B
28 lb/in
Properties Thermal Conductivity
10 BTU-in/(ft2)(hr)(°F)
Properties Viscosity Cps
25,000 (Part A) | 300 (Part B)
Properties Volume Resistivity
1 x 1014 ohm-cm
Specifications Ideal Conditions
40 to 60 % Relative Humidity | 68 to 78 °F (20 to 26 °C)
Specifications Linear Shrinkage
0.1 %
Specifications Mixed Viscosity
8000 cps
Specifications Shelf Life At 72 F
12 m
Specifications Shore A Hardness
70 duro
Specifications Specific Gravity
0.98 | 0.98 (Part B) | 2.25 | 2.25 (Part A)
Specifications Tensile Elongation
70 %
Specifications Tensile Strength
650 psi
Specifications Type
High Thermally Conductive Silicone
Use Instructions 0
Pre mix RTV-793 thoroughly. Weigh out the required amount of Part A and add the required amount of Part B. Mix thoroughly scraping both the bottom and sides of the mixing container. Evacuate the air and then apply.
