Rugged Compression Load Cells
Rugged Compression Load Cells
SKU:LOA-6efe6c
Measure compression forces reliably with our low-profile and rugged Compression Load Cells, ideal for high-frequency dynamic load sensing applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Rugged Compression Load Cells
$699.99
Quantity: 1
Claim Your Seller Account
Rugged Compression Load Cells
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

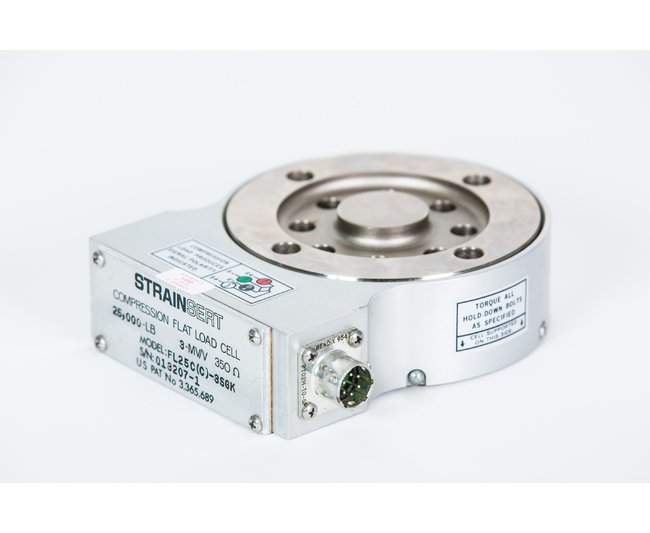

The Rugged Compression Load Cells are designed to measure forces in compression accurately, with a load capacity of 100,000 lb. These load cells feature a low profile, compact and lightweight design, ensuring high static overload protection and low sensitivity to extraneous loads. Built with high-quality alloy steel, they incorporate sealed strain gages for reliable performance in dynamic load sensing applications. With a pressure-compensating design and precise construction, they offer superior performance in a wide range of institutional and government settings.
Product Specifications

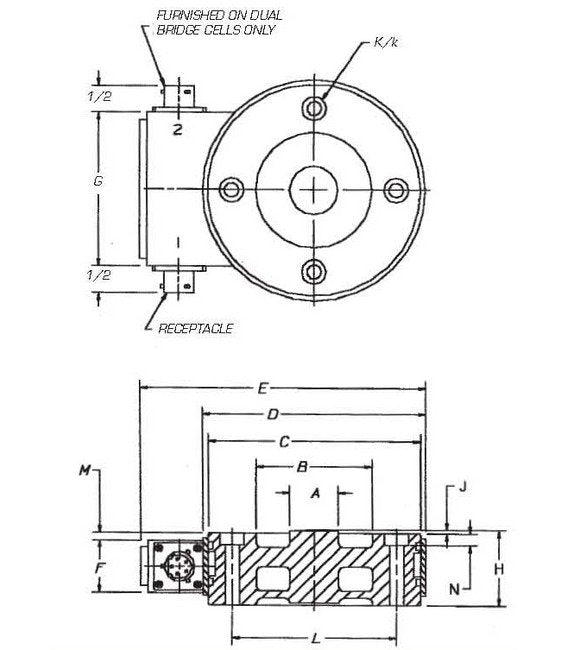

Dimensional Drawing Dimensional Drawing
Strainsert Compression Load Cell.jpg
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Receptacle
PT02H-10-6P
Electrical Specifications Signal
Green
Features 0
Low Profile, Rugged, Compact & Lightweight Low Deflection High Frequency Dynamic Load Sensing Pressure Compensating Sealed Strain Gages Counterbored Mounting Holes Low Sensitivity to Extraneous Loads High Static Overload
General Information 0
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal is obtained by equal straining of all shear gages in the bridge circuit.Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
Mechanical Properties 0
FL100C_MP
Performance Specs Bridge Resistance
350 Ohms (Nominal)
Performance Specs Compensated Range
60 to 150 ºF
Performance Specs Effect On Output
±0.0030% Load/°F (Nominal)
Performance Specs Effect On Zero
±0.0035% FS/°F
Performance Specs Excitation Voltage
15V AC or DC (Maximum)
Performance Specs Hysteresis
General Purpose ±0.15% FS | Precision ±0.10% FS
Performance Specs Insulation Resistance
10,000 Megaohms (Minimum)
Performance Specs Non Linearity
General Purpose ±0.25% FS | Precision ±0.10% FS
Performance Specs Non Repeatability
±0.05% FS
Performance Specs Safe Static Overload Without Output Shift
200%FS
Performance Specs Safe Static Overload Without Structural Failur
250%FS
Performance Specs Safe Static Overload Without Zero Shift
200%FS
Performance Specs Zero Balance
±2% FS (Nominal)
Specifications A Diameter
2-1/16 in
Specifications B Diameter
4-15/16 in
Specifications Configuration
Dual Bridge | Single Bridge
Specifications C Diameter
6-7/8 in
Specifications D Diameter
7-1/4 in
Specifications F Height
1-1/2 in
Specifications G Width
3-3/4 in
Specifications H Height
2-1/2 in
Specifications K Inside Diameter
11/32 in
Specifications K Outside Diameter
1/2 in
Specifications Lifting Holes Bc Diameter
NONE
Specifications Load Capacity
100,000 lb
Specifications L Diameter
5-3/4 in
Specifications Material Of Construction
Alloy Steel
Specifications N Depth Of Hole
11/32 in
