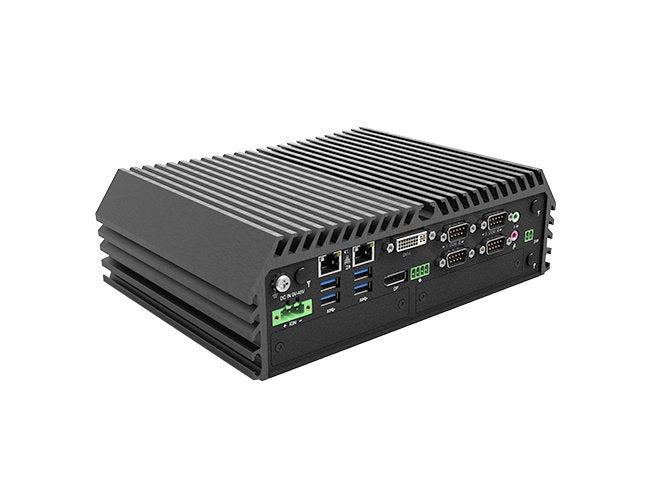

  • Rugged Embedded Computer DX-1200-R10 - Image 2

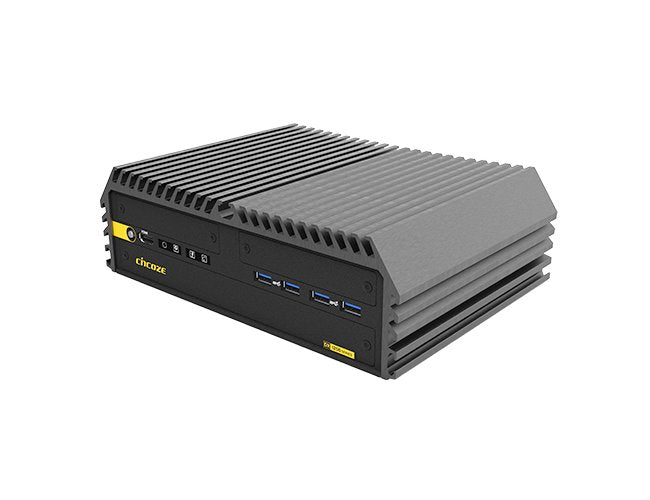

  • Rugged Embedded Computer DX-1200-R10 - Image 3
  • Rugged Embedded Computer DX-1200-R10 - Image 4

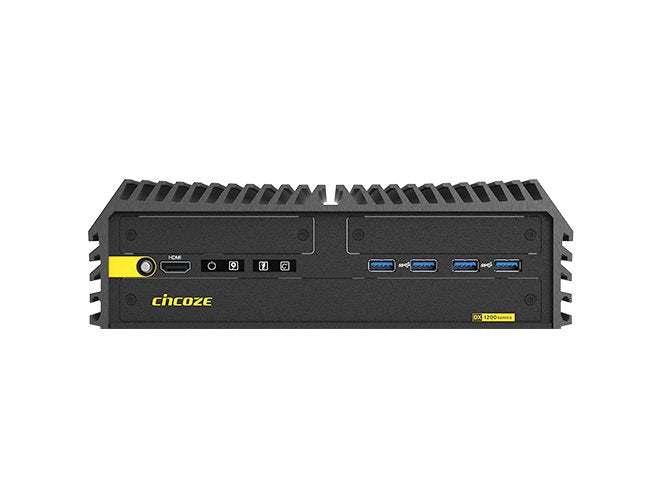

  • Rugged Embedded Computer DX-1200-R10 - Image 5
1 5
Cincoze Co., Ltd. →

Rugged Embedded Computer DX-1200-R10

Rugged Embedded Computer DX-1200-R10

RUG-75a8b6

Experience extreme performance and reliability with the DX-1200-R10 Rugged Embedded Computer, ideal for smart manufacturing & AI applications.

$1,499.99
$1,499.99
Sale

Initiate Order

Rugged Embedded Computer DX-1200-R10

Rugged Embedded Computer DX-1200-R10

$1,499.99

Quantity: 1

Claim Your Seller Account

Rugged Embedded Computer DX-1200-R10

Rugged Embedded Computer DX-1200-R10

$1,499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Rugged Embedded Computer DX-1200-R10 is a high-performance, compact solution designed for smart manufacturing, machine vision, and edge AI applications. Powered by 13th/12th Gen Intel® Core™ processors and DDR5 memory, this fanless computer offers extreme computing power. With rich I/O capabilities, modular expansion design, and robust construction, the DX-1200-R10 excels in demanding industrial environments, ensuring reliable performance and flexibility.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information Additional Information
Rapid Processing and InferenceThe DX-1200 supports 13/12th gen Intel® Core™ i9/i7/i5/i3 (Raptor Lake-S/Alder Lake-S) processors based on the Intel® 7 process, with up to 24 cores (8P + 16E) and 32 threads, delivering more than 1.35x the speed of Comet Lake-S platform. The Intel® Xe architecture of the UHD 770 graphics chip boosts GPU image classification inference performance to 2.8× the speed of Comet Lake-S, providing the processing performance needed for AI and edge computing.High-speed, Safe MemoryTwo DDR5 SO-DIMM slots support up to 64GB of 4800MHz memory and include ECC (Error Correction Code) technology, giving the extra stability and reliability needed for industrial automation applications.Rich and Diverse ExpandabilityTo cater to the widest range of industrial applications, the DX-1200 provides one M.2 Key E slot and two Mini PCIe slots for the addition of WiFi, GNSS, 4G, and Bluetooth. The Mini PCIe slots also support I/O expansion cards, frame grabber cards, and more, to meet different application requirements.High-speed, Reliable Data TransmissionTo improve the transfer rate of videos or large files, the DX-1200 supports up to four high-speed 10Gbps LAN ports. And for application environments that require multiple network connections, the DX-1200 supports up to 8× PoE, providing data and power through the same cable to reduce the difficulty of wiring.Robust and ReliableThe DX-1200 is built tough, reflected in its industrial-grade protection design and industry certifications in different fields. In addition to features such as wide temperature (-40 70ºC), wide voltage input (9 48 VDC), overvoltage, overcurrent, and ESD protection, it also complies with the US military shock vibration standard MIL-STD-810G. Product safety and reliability are further ensured with internationally recognized UL 62368-1 safety certification. For more secure railway computing, it also passes the EMC EN 50121-3-2 standard in EN 50155 and the EN 45545-2 fire protection standard.
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-Out, Phone Jack 3.5 mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN 50155 (EN 50121-3-2 Only)E-mark
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 50121-3-2 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Environment Environmental Management System Ems
EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/mEN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kVEN/IEC 61000-4-6 CS: 10VEN/IEC 61000-4-8 PFMF: 50 Hz, 1A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Environment Fire Protection
EN 45545-2
Environment Non Condensing Relative Humidity Rh At 70 Degree Cel
95 %
Environment Note For Operating Temperature
With extended temperature peripherals; Ambient with air flowAccording to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Environment Operating Temperature At 35 Watt W Thermal Design Po
-40 to 70 ºC
Environment Operating Temperature At 65 Watt W Thermal Design Po
-40 to 50 ºC
Environment Safety
Canadian Underwriters Laboratories (cUL) | Certification Body Scheme (CB) | European Norm (EN 62368-1) | International Electrotechnical Commission (IEC) | Underwriters Laboratories (UL)
Environment Shock
MIL-STD-810G
Environment Storage Temperature
-40 to 85 ºC
Environment Vibration
MIL-STD-810G
Expansion Combined Multiple Interface Cmi Inputoutput Io
2 x High Speed CMI Interface for optional CMI Module Expansion1 x Low Speed CMI Interface for optional CMI Module Expansion
Expansion Control Function Module Cfm Interface
1 x CFM IGN Interface for optional CFM-IGN Module Expansion
Expansion M2 Key E Socket
1 x M.2 Key E Type 2230 Socket, Support Intel® CNVi Module
Expansion Mini Peripheral Component Interconnect Express Pcie So
2 x Full-size Mini-PCIe Socket
Expansion Subscriber Identity Module Sim Socket
1 x SIM Socket
Features Features
Intel® 13/12th Gen Raptor Lake-S / Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP)2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHZ, 64GBQuad Independent Display (HDMI / DP / DVI-I)1x M.2 Key E Type 2230 Socket for Intel® CNVi / Wireless ModuleCMI Technology for Optional I/O Module ExpansionsCFM Technology for Power Ignition Sensing & PoE FunctionWide Operating Temperature -40ºC to 70ºCSafety Standard: UL, cUL, CB, IEC, EN 62368-1
Graphics Digital Visual Interface Dvi
1x DVI-I Connector(VGA: 1920 x 1080 at 60 Hz)(DVI-D: 1920 x 1200 at 60 Hz)
Graphics Displayport Dp
1x DisplayPort Connector (4096 x 2304 at 60 Hz)Verified maximum resolution: 3840 x 2160 at 60 Hz
Graphics Graphics Engine
Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5Integrated Intel® UHD Graphics 730: Core™ i3Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Graphics High Definition Multimedia Interface Hdmi
1x HDMI Connector (3840x2160 at 30Hz)
Graphics Maximum Display Output
Supports Quad Independent Display
Inputoutput Io Ports Communication Port Com
4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
Inputoutput Io Ports Local Area Network Lan
2 x 1GbE LAN, RJ45(Supports Wake on LAN, PXE)GbE1: Intel® I219GbE2: Intel® I210
Inputoutput Io Ports Universal Serial Bus Usb
4 x USB 3.2 Gen2x1 (10Gbps), Type A4 x USB 3.2 Gen1x1 (5Gbps), Type A
Operating System Linux
Ubuntu 22.04
Physical Depth
173 mm
Physical Height
75 mm
Physical Width
242 mm
Power Power Button
1 x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1 x AT/ATX Mode Switch
Power Remote Power Onoff
1 x Remote Power On/Off, 2-Pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
