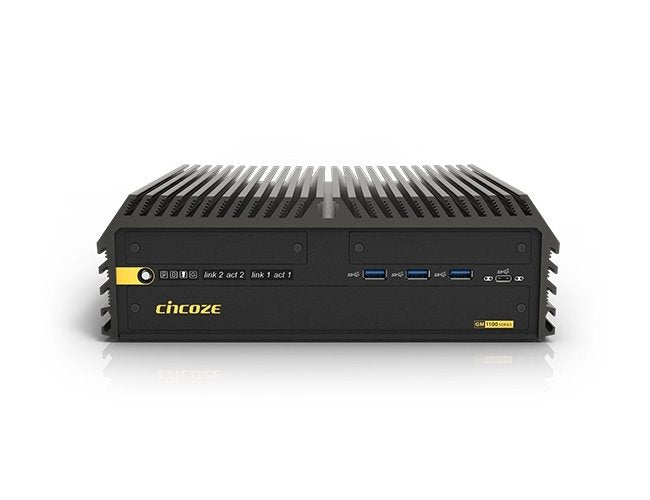

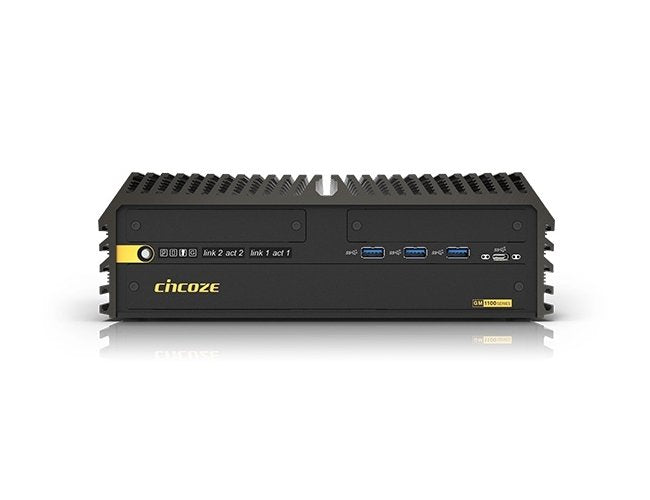

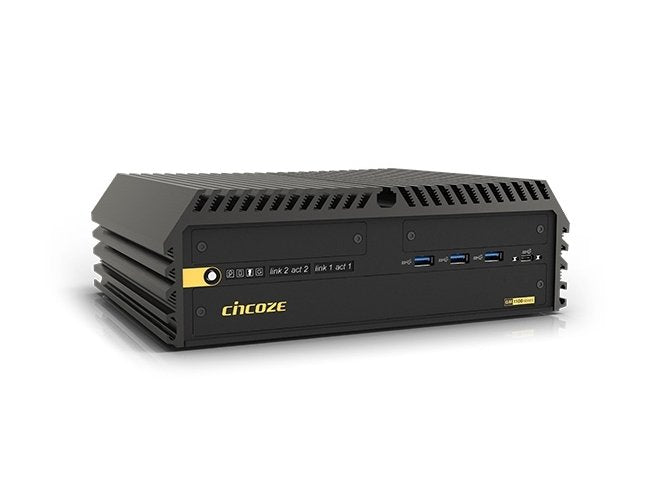

The GM-1100-R10 is a rugged, compact MXM GPU computer designed for high-performance computing in edge AI applications. Featuring powerful 14th Generation Intel Raptor Lake-S Refresh Series CPUs, up to 64GB DDR5 memory, and integrated Intel UHD Graphics, it offers flexible expansion options like MXM GPU module support, multiple M.2 sockets, and RAID capabilities. With a fanless design, wide operating temperature range, and compliance with stringent military standards, including MIL-STD-810H, this system ensures optimal performance and reliability in challenging environments.
Product Specifications
Additional Information Additional Information
3X Performance boostEquipped with a 14th generation Intel® Core⢠(Raptor Lake-S Refresh) processor, the GM-1100 is capable of three times the computing performance of its predecessor. For highly complex or specialized tasks the hybrid or P-Core⢠monolithic architecture can be chosen for the best performance based on specific needs.MXM GPU moduleType A and B MXM GPU modules allow comprehensive options to suit lightweight AI or high-performance AI inference applications. The special modular design also means painless upgrades to higher-end MXM modules to bolster performance in the future.High-speed connections and data storageNative 2.5GbE LAN and 20Gbps USB 3.2 Gen2x2 Type-C high-speed connections effectively improve the efficiency of image and file transfer. Storage options include two 2.5â HDD/SSD bays and options for high-speed NVMe SSD storage.Ideal for mobility applicationsCompact size (260 x 200 x 85 mm), multiple M.2 expansion slots for 5G of Wi-Fi communication modules, and compliance with rail transit certification (EN50121-3-2) and vehicle certification (E-mark) make the GM-1100 ideal for mobility applications.Superior cooling performanceThe innovative thermal design improves system cooling by providing independent heat dissipation channels for the CPU and GPU to the upper cover and sides of the extruded aluminum case. Combined with an external fan, it provides a solid foundation for stable and reliable operation.Rugged safetyThe harsh challenges of the Edge AI environment are overcome with industrial grade wide temperature (-40 to 70ºC) and wide voltage (9 to 48 VDC) support, and passing the US military shock standard (MIL-STD-810H) to ensure product stability and safety.
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-out, Phone Jack 3.5mm
Audio Mic In
1x Mic-in, Phone Jack 3.5mm
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 50121-3-2 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN 61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Environment Environmental Management System Ems
EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/mEN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kVEN/IEC 61000-4-6 CS: 10V (Compliant with the standard when utilizing shielded cable.)EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Environment Non Condensing Relative Humidity Rh At 70 Degree Cel
95 %
Environment Operating Temperature
35W TDP Processor: -40ºC to 70ºC65W TDP Processor with external FAN: (TBC)PassMark BurnInTest: 100% CPU, 2D/3D Graphics thermal throttling)For GM-1100 + MXM GPU Module operating temperature, please refer to the last page - Operating Temperature Matrix Table for more information (TBC)With extended temperature peripherals; Ambient with air flowAccording to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Environment Shock
MIL-STD-810H
Environment Storage Temperature
-40 to 70 ºC
Environment Vibration
MIL-STD-810H
Expansion Combined Multiple Interface Cmi Inputoutput Io
1x High Speed CMI Interface for optional CMI Module Expansion1x Low Speed CMI Interface for optional CMI Module Expansion
Expansion Control Function Module Cfm Interface
1x CFM IGN Interface for optional CFM-IGN Module Expansion
Expansion M2 Key B Socket
1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen2x1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion2x M.2 Key B Type 2242 Socket (PCIe Gen 4x2 / USB2.0 / SATA ), Support Storage/Add-on Card Expansion
Expansion M2 Key E Socket
1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Wireless/Intel® CNVi Module Expansion
Expansion Mxm Socket
1x MXM Carrier Board Socket for MXM GPU Module Expansion
Expansion Subscriber Identity Module Sim Socket
2x SIM Socket
Features Features
Intel® 14/13/12th Gen Core⢠i9/i7/i5/i3 Processors (max 65 W TDP)Supports 1x MXM 3.1 Type A/B form factor GPU module expansion.1x 2.5GbE LAN, 1x 20Gbps USB3.2 Gen2 x2, Type C Connector1x M.2 Key M Type 2280 Socket for PCIe Gen4x4 NVMe Storage1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion1 x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion2 x M.2 Key B Type 2242 Socket for Storage/Add-on Card ExpansionOptional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing FunctionWide operating temperature -40ºC to 70ºC
Graphics Displayport Dp
1x DisplayPort Connector (4096 x 2304 at 60Hz) (Verified maximum resolution: 3840 x 2160 at 60Hz)
Graphics Graphics Engine
Integrated Intel® UHD Graphics 770: Core⢠i9/i7/i5Integrated Intel® UHD Graphics 730: Core⢠i3Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Graphics High Definition Multimedia Interface Hdmi
1x HDMI Connector (4096 x 2160 at 30Hz) (Verified maximum resolution: 3840 x 2160 at 30Hz)
Graphics Maximum Display Output
Supports Triple Independent Display
Graphics Video Graphics Array Vga
1x VGA Connector (1920 x 1200 at 60Hz)

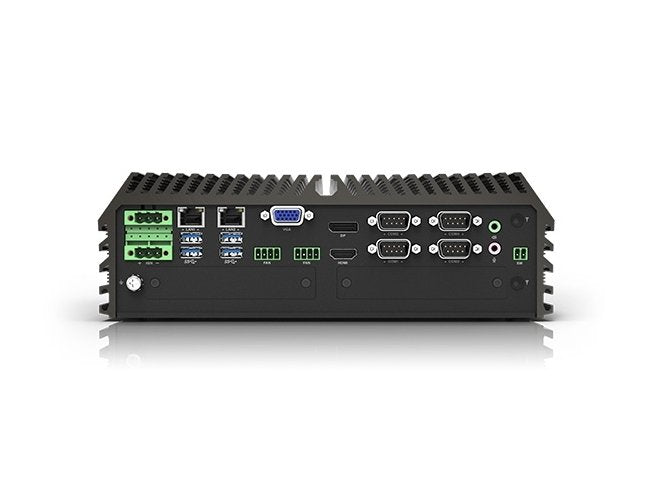

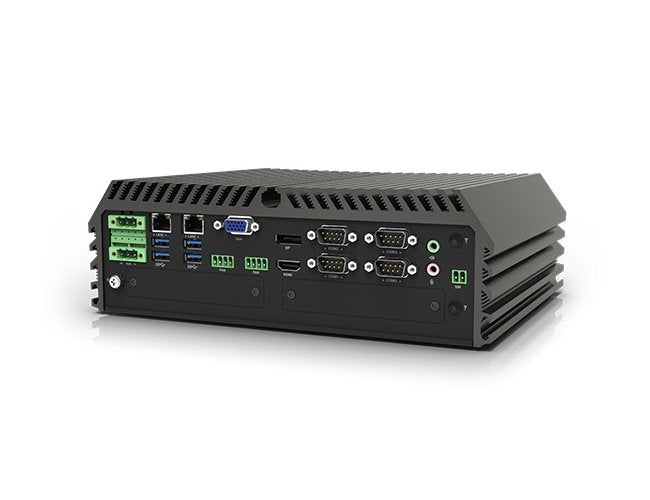

Inputoutput Io Ports Local Area Network Lan
1x 2.5GbE LAN, RJ45 (Intel® I225)1x 1GbE LAN, RJ45 (Intel® I219)
Inputoutput Io Ports Universal Serial Bus Usb
1x 20Gbps USB3.2 Gen2 x2, Type C3x 10Gbps USB3.2 Gen2 x1, Type A4x 5Gbps USB3.2 Gen1 x1, Type A
Operating System Linux
Ubuntu Desktop 22.04 LTS
Operating System Windows
Windows®10 | Windows®11
Other Function Antenna Holes
2x Antenna Holes
Other Function Clear Complementary Metal Oxide Semiconductor Cmo
1x Clear CMOS Switch
Other Function Power Ignition Sensing
Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Physical Depth
200 mm
Physical Height
85 mm
Physical Width
260 mm
Power Maximum Power Consumption
35W CPU: 187.51W65W CPU: 258.96WTest conducted with CPU, 1x RAM, and 1x storage100% load during burn-in testing.
Power Power Button
1x ATX Power On/Off Button
Power Power Input
9-48 VDC, Single Power Source (Connector Type: 2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A)Power input voltage from 9V to 23V must use dual power connectors, Power input voltage from 24V to 48V can use single po
Power Power Mode Switch
1x AT/ATX Mode Switch
Power Remote Power Onoff
1x Remote Power On/Off, 2-pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
