Rugged TCXO Crystal Oscillator - 10-100MHz
Rugged TCXO Crystal Oscillator - 10-100MHz
SKU:TCX-e62495
High-performance TCXO Crystal Oscillator for precise frequency control in rugged conditions.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Rugged TCXO Crystal Oscillator - 10-100MHz
$129.99
Quantity: 1
Claim Your Seller Account
Rugged TCXO Crystal Oscillator - 10-100MHz
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TCXO 10 to 100 Megahertz Frequency Temperature-Compensated Crystal Oscillator from Greenray Industries is engineered for low noise, tight stability, and rugged performance. With exceptional phase noise performance, this TCXO offers frequency stability to ±0.5 ppm across -40 to +85°C. It features a 22.9 x 17.8 mm compact design, operates at 3.3 or 5 VDC, and delivers a CMOS square wave output. Ideal for telecommunications, mobile radio, airborne communications, and more, it meets stringent industry standards for reliability and performance.
Product Specifications
Applications Applications
TelecommunicationsMobile radioMobile instrumentationAirborne communicationsWireless communicationsMicrowave receivers
Direct Current Dc Supply Maximum Direct Current Dc Supply Voltag
3.6 V | 5.25 V
Direct Current Dc Supply Maximum Supply Current
30 mA
Direct Current Dc Supply Minimum Direct Current Dc Supply Voltag
3.0 V | 4.75 V
Direct Current Dc Supply Direct Current Dc Supply Voltag
3.3 V | 5.0 V
Electrical Characteristics Maximum Acceleration Sensitivity
2.5 ppb/g
Electrical Characteristics Maximum Aging Per Year
±1 ppm
Electrical Characteristics Maximum Frequency Versus Load For A 5
0.1 ppm
Electrical Characteristics Maximum Frequency Versus Voltage At 5
0.1 ppm
Electrical Characteristics Maximum Level At 15 Power Factor Pf L
0.3 "0" Level V
Electrical Characteristics Maximum Nominal Frequency At Compleme
100 MHz
Electrical Characteristics Maximum Total Stability
±5 ppm
Electrical Characteristics Minimum Level At 15 Power Factor Pf L
VDD-0.3 "1" Level V
Electrical Characteristics Minimum Nominal Frequency At Compleme
10 MHz
Electrical Characteristics Risefall Time
â¤10 ns
Electrical Characteristics Electronic Frequency Control
6 ppm
Electrical Characteristics Frequency Stability At 40 To
0.5 ppm | 1.0 ppm
Environmental Shock
ConditionsMIL-STD-202Method213, Cond KNotes90 g peak, half sine, 5 ms
Environmental Vibration
ConditionsMIL-STD-202Method201ANotes0.6 PSD, 34.02 g RMS, 3min/axis
Features Features

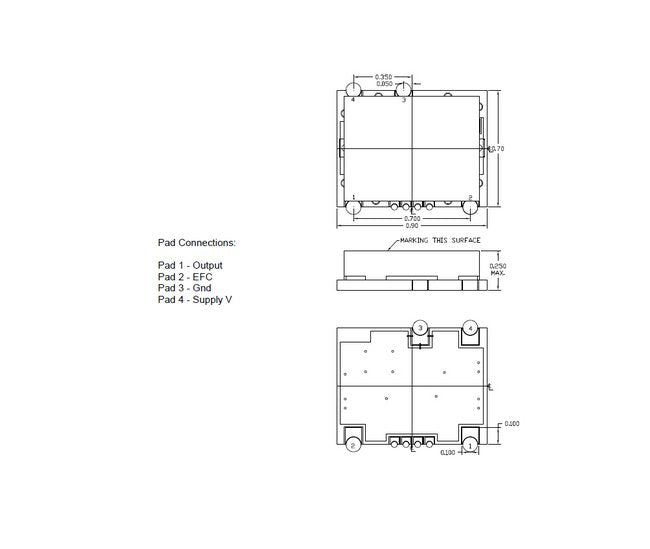

22.9 x 17.8 mm, ruggedized package3.3 or 5 VDC SupplySquare wave, CMOS outputTemperature Stability to ±0.5 ppm (-40 to +85°C)160 dBc/Hz Noise FloorExtended, long-term stability performance
Phase Noise Performance Phase Noise At 100 Megahertz Mhz
-160 dBc/Hz
Phase Noise Performance Phase Noise At 10 Megahertz Mhz
-160 dBc/Hz
Radio Frequency Rf Output Sinewave Maximum Load
16.5 pF
Radio Frequency Rf Output Sinewave Maximum Risefall Time At 15 P
10 ns
Radio Frequency Rf Output Sinewave Maximum Symmetry
60 %
Radio Frequency Rf Output Sinewave Minimum Load
13.5 pF
Radio Frequency Rf Output Sinewave Minimum Symmetry
40 %
Radio Frequency Rf Output Sinewave Load
15 pF
Radio Frequency Rf Output Sinewave Symmetry
50 %
Recommendation And General Information Marking
Line 1: Greenray logoLine 2: ModelLine 3: FrequencyLine 4: Serial NumberLine 5: Data code (YYWW)
Recommendation And General Information Operating Temperature
-40 to 85 ºC
