Rugged TCXO Crystal Oscillator 50-100MHz
Rugged TCXO Crystal Oscillator 50-100MHz
SKU:TCX-f3806b
Highly reliable TCXO Crystal Oscillator with exceptional phase noise performance and low acceleration sensitivity. Ideal for mobile applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Rugged TCXO Crystal Oscillator 50-100MHz
$129.99
Quantity: 1
Claim Your Seller Account
Rugged TCXO Crystal Oscillator 50-100MHz
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

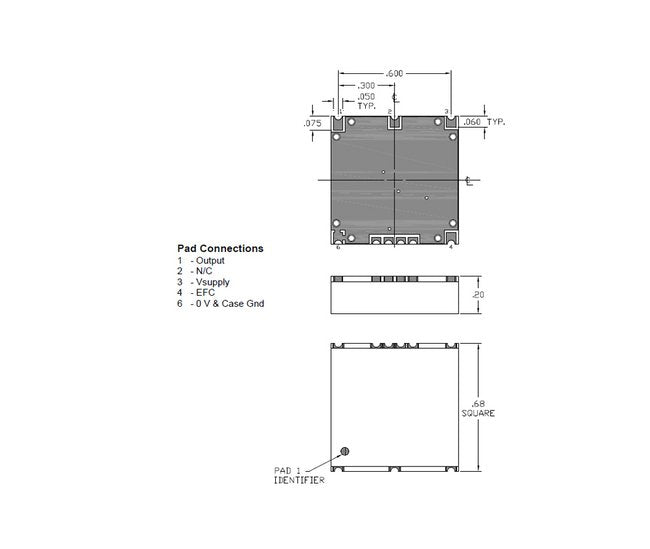

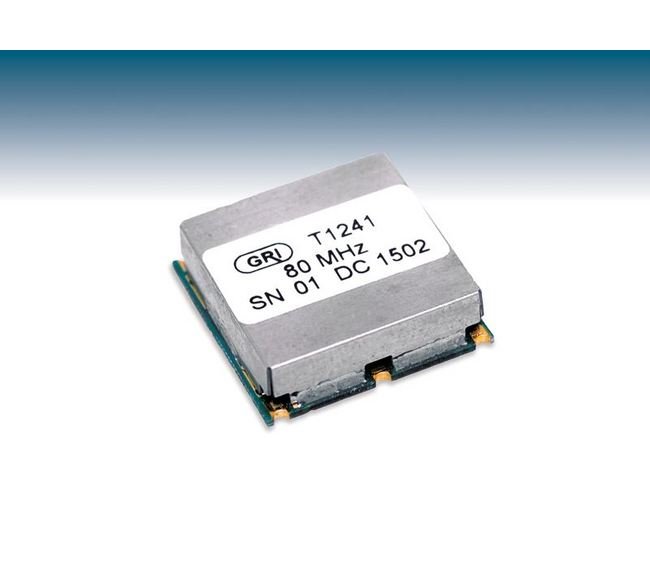

The Rugged TCXO Crystal Oscillator 50-100MHz by Greenray Industries is engineered for unparalleled reliability in high vibration and shock environments. With exceptional phase noise performance and a durable package, this TCXO offers precise frequency stability from -40 to +85 ºC. Ideal for telecommunications, airborne communications, and more, this oscillator features a low acceleration sensitivity of 0.07 ppb/g, meeting stringent industry standards and ensuring superior performance in mobile applications.
Product Specifications
Applications Applications
TelecommunicationsMobile radioMobile instrumentationAirborne communicationsWireless communicationsMicrowave receivers
Direct Current Dc Supply Maximum Direct Current Dc Supply Voltag
3.6 V | 5.25 V
Direct Current Dc Supply Maximum Supply Current
30 mA
Direct Current Dc Supply Minimum Direct Current Dc Supply Voltag
3.0 V | 4.75 V
Direct Current Dc Supply Direct Current Dc Supply Voltag
3.3 V | 5.0 V
Electrical Characteristics Maximum Acceleration Sensitivity
0.09 ppb/g | 0.3 ppb/g | 0.8 ppb/g
Electrical Characteristics Maximum Aging Per Year
±1 ppm
Electrical Characteristics Maximum Frequency Versus Load For A 5
0.1 ppm
Electrical Characteristics Maximum Frequency Versus Voltage For
0.3 ppm
Electrical Characteristics Maximum Level At 15 Power Factor Pf L
+0.2 V "0" Level
Electrical Characteristics Maximum Nominal Frequency
100 MHz
Electrical Characteristics Maximum Risefall Time
10 ns
Electrical Characteristics Minimum Level At 15 Power Factor Pf L
VDD-0.2 V "1" Level
Electrical Characteristics Minimum Nominal Frequency
50 MHz
Electrical Characteristics Note For Nominal Frequency
CMOS Square Wave
Electrical Characteristics Acceleration Sensitivity
0.07 ppb/g | 0.1 ppb/g | 0.5 ppb/g
Electrical Characteristics Electronic Frequency Control
5 ppm
Electrical Characteristics Frequency Stability At 20 To
3 ppm
Electrical Characteristics Frequency Stability At 40 To
5 ppm
Environmental Shock
Standard - MIL-STD-202FMethod, Condition - 213, KDescription - 30 g peak, sawtooth, 11 ms
Environmental Vibration
Standard - MIL-STD-202FMethod, Condition - 214, I.FDescription - 0.3 PSD, 20.71 g RMS, 3min/axis
Features Features
Excellent phase noise performance under high shock/high vibration conditionsRugged package for high reliability; ideally suited for mobile applications.g-Sensitivity down to 0.07 ppb/g applied acceleration forceFrequency: 50 - 100MHzEFC for precise tuning or phase locking apps17.3mm sq. package+3.3 or 5VDC SupplySquarewave CMOS output
Phase Noise Performance Phase Noise At 10 Megahertz Mhz
-160 dBc/Hz
Radio Frequency Rf Output Sinewave Maximum Symmetry
60 %
Radio Frequency Rf Output Sinewave Minimum Symmetry
40 %
Radio Frequency Rf Output Sinewave Load
15 pF
Radio Frequency Rf Output Sinewave Symmetry
50 %
Recommendation And General Information Marking
Line 1: Greenray logo + ModelLine 2: FrequencyLine 3: Serial NumberLine 4: Data Code (YYWW)
Recommendation And General Information Operating Temperature
-40 to 85 ºC
Recommendation And General Information Package Weight
3 g
Recommendation And General Information Shipping
Tray pack and Tape & Reel
Recommendation And General Information Soldering Instruction
Reflow
Recommendation And General Information Storage Temperature
-55 to 105 ºC
Recommendation And General Information Terminal Finish
Electroless Nickel Immersion Gold (ENIG)
