Rugged Telephone Plug with DPDT Slide Switch and MJ-101 Jack Section
Rugged Telephone Plug with DPDT Slide Switch and MJ-101 Jack Section
SKU:TEL-6355d0
Rugged Telephone Plug with DPDT Slide Switch, MJ-101 Jack Section. Ideal for Commercial/Military applications. Meets MIL-C-9177.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Rugged Telephone Plug with DPDT Slide Switch and MJ-101 Jack Section
$24.99
Quantity: 1
Claim Your Seller Account
Rugged Telephone Plug with DPDT Slide Switch and MJ-101 Jack Section
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

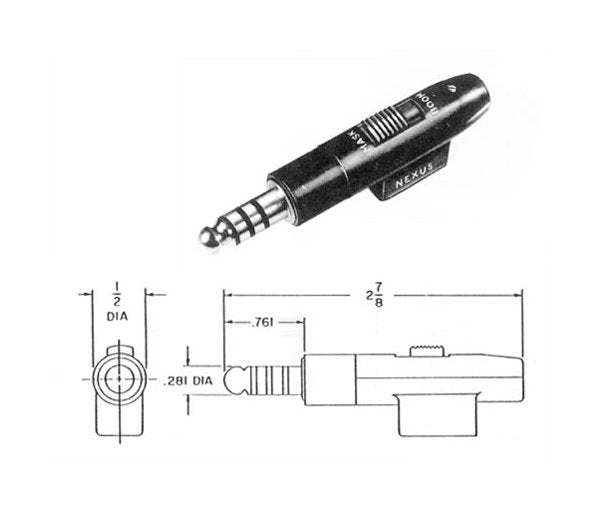

The Rugged Telephone Plug features a DPDT Slide Switch and MJ-101 Jack Section, designed for Ruggedized Commercial and Military applications. With 4 conductors, this plug boasts an overall diameter of .500 in and meets MIL-C-9177 standard. Its pre-tinned solder contact terminals ensure reliable connectivity, while its superior build quality guarantees a contact resistance of ≤ .02 O and insulation resistance of ≥ 1,000 mO. This plug also complies with a Dielectric Withstanding Voltage (RMS) of ≥ 500 V, making it ideal for demanding environments. Additionally, the insertion and withdrawal forces of 13 lb and 6 to 10 lb respectively ensure secure connections.
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
4
Specifications Contact Diameter
.281 in
Specifications Contact Length
.761 in
Specifications Contact Resistance
⤠.02 O
Specifications Dielectric Withstanding Voltage Rms
⥠500 V
Specifications Insertion Force Maximum
13 lb
Specifications Insulation Resistance
⥠1,000 mO
Specifications Overall Diameter
.500 in
Specifications Overall Length
2.875 in
Specifications Shell Material
Plastic
Specifications Solder Contact Terminals
Pre-tinned over Nickel Plating
Specifications Standard
MIL-C-9177
Specifications Withdrawal Force
6 to 10 lb
