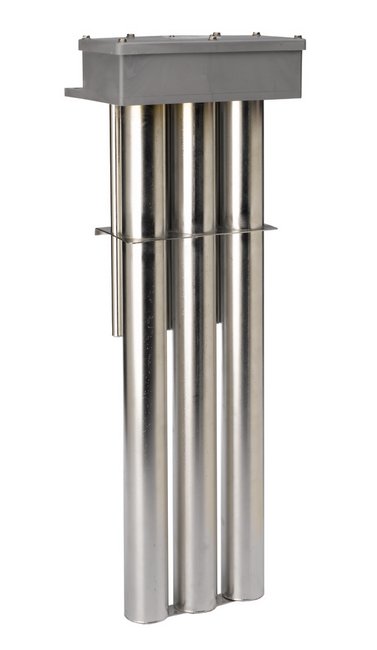

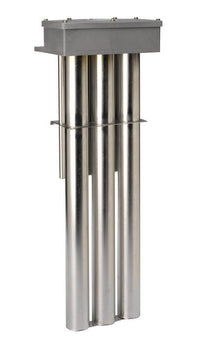

Rugged Titanium Triple Metal Heater - D3 Series
Rugged Titanium Triple Metal Heater - D3 Series
SKU:HEA-69fe15
D3 Series Titanium Heater: Rugged construction, superior chemical resistance, and certified safety features for reliable performance.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Rugged Titanium Triple Metal Heater - D3 Series
$2,499.99
Quantity: 1
Claim Your Seller Account
Rugged Titanium Triple Metal Heater - D3 Series
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The D3 Series Derated Triple Metal Heater offers exceptional performance and durability for industrial applications. With watt densities up to 35W per square inch, this heater ensures a long service life. Featuring a corrosion-resistant head and thermal protectors, it guarantees safety and efficiency. The rugged construction with titanium material provides superior chemical resistance, making it suitable for various solutions. Certified by cUL US, this heater from Process Technology is a reliable choice for demanding environments.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE:For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in:Steel.304 stainless steel.316 stainless steel.Titanium.OUTSTANDING PERFORMANCE:Watt densities up to 35 watts per square inch (5.4 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protectors built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 1,500 watts to 18,000 watts.VOLTAGES:120 to 600 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C)P5:for solutions up to 300°F (149°C)Resettable thermal protectors:P2: for solutions up to 180°F (82°C)P6: for solutions up to 230°F (110°C)P7: for solutions up to 300°F (149°C)Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Specifications Certifications
cUL US Listed
Specifications Hot Zone
6 " | 152 mm
Specifications Manufacturer
Process Technology
Specifications Material
Titanium
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Overall Length
11 " | 279 mm
Specifications Phase
Single | Three
Specifications Shipping Weight
21.0 Pound
Specifications Volts
240 V
Specifications Watts
1500 W
Specifications Weight
21.0 lbs | 9.5 kg
