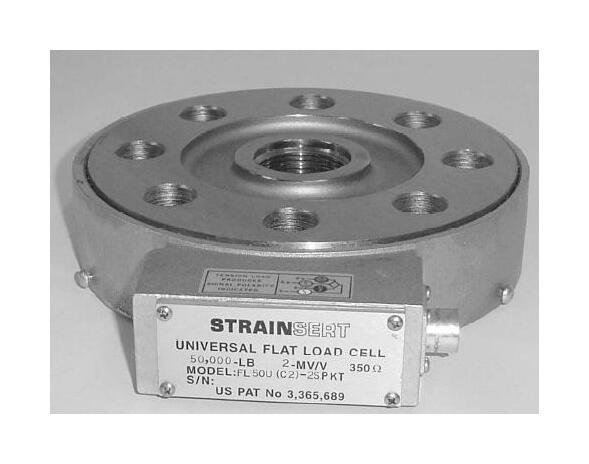

The Rugged Universal Load Cells are precision instruments designed to measure forces in both tension and compression. With a load capacity of 25,000 lb and precise non-linearity of ±0.10% F.S., these load cells offer high accuracy and reliability for a wide range of applications. Built with low profile, compact, and lightweight materials, these load cells feature sealed strain gages for pressure compensation, ensuring accurate readings even in challenging environments. Meeting stringent industry standards, these load cells are ideal for institutional and government procurement needs.
Product Specifications
Dimensional Drawing Dimensional Drawing
Universal Flat Load Cells
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Receptacle
PT02H-10-6P
Electrical Specifications Signal
Green
Features 0
Low Profile, Rugged, Compact & Lightweight Low Deflection High Frequency Dynamic Load Sensing Pressure Compensating Sealed Strain Gages Counterbored Mounting Holes Low Sensitivity to Extraneous Loads High Static Overload
General Information 0
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal is obtained by equal straining of all shear gages in the bridge circuit.Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
Mechanical Properties 0
FL25U_MP
Performance Specs Bridge Resistance
350 Ohms (Nominal)
Performance Specs Compensated Range
60 to 150 ºF
Performance Specs Effect On Output
±0.0030% Load/°F (Nominal)
Performance Specs Effect On Zero
±0.0035% FS/°F
Performance Specs Excitation Voltage
15V AC or DC (Maximum)
Performance Specs Hysteresis
General Purpose ±0.15% FS | Precision ±0.10% FS
Performance Specs Insulation Resistance
10,000 Megaohms (Minimum)
Performance Specs Non Linearity
General Purpose ±0.25% FS | Precision ±0.10% FS
Performance Specs Non Repeatability
±0.05% FS
Performance Specs Safe Static Overload Without Output Shift
200%FS
Performance Specs Safe Static Overload Without Structural Failur
250%FS
Specifications A Diameter
1-5/8 in
Specifications B Diameter
2-27/32 in
Specifications C Diameter
4-7/8 in
Specifications D Diameter
5-1/8 in
Specifications F Height
1-3/8 in
Specifications G Width
3-3/4 in
Specifications H Height
1-1/2 in
Specifications K Inside Diameter
13/32 in
Specifications K Outside Diameter
41/64 in
Specifications Lifting Holes Bc Diameter
NONE
Specifications Load Capacity
25,000 lb
Specifications L Diameter
3-3/4 in
Specifications N Depth Of Hole
1/2 in
