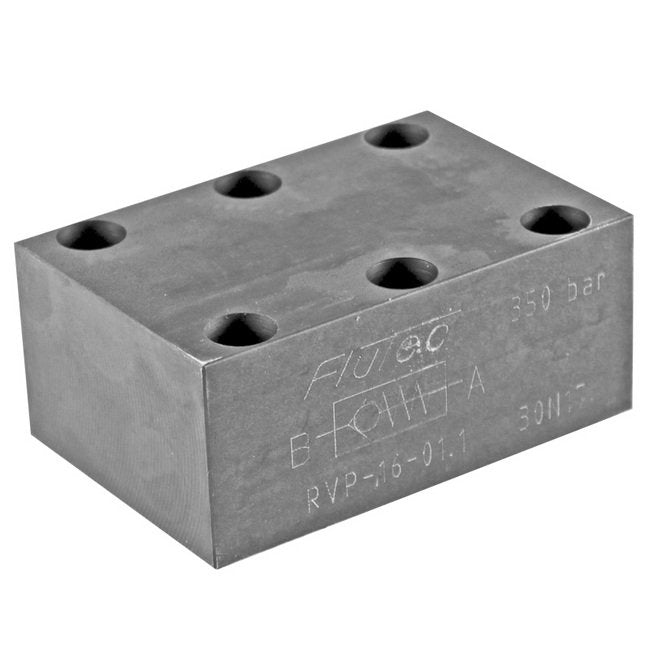

RuggedFlow Manifold Check Valves
RuggedFlow Manifold Check Valves
SKU:ACC-17ebf9
RuggedFlow Manifold Check Valves - Reliable flow control in a rugged design for demanding applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
RuggedFlow Manifold Check Valves
$89.99
Quantity: 1
Claim Your Seller Account
RuggedFlow Manifold Check Valves
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RuggedFlow Manifold Check Valves are designed for precise flow control in demanding applications. Constructed with carbon steel housing and featuring a metal-to-metal seal design, these valves ensure reliable performance even in harsh environments. With a maximum operating pressure of 345 bar and a cracking pressure of 0.5 bar, they meet the most stringent industrial requirements. Please note, these valves are not recommended for high-cycle applications.
Product Specifications
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0
Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
0.5 bar | 7 psi
Specifications Dimension L
2.64 in | 67 mm
Specifications Division
ACCESSORIES
Specifications Housing Material
Carbon Steel
Specifications Kinematic Viscosity At 86 F30 C
335 SUS
Specifications Model Code Description
RVP-08-01.X
Specifications Mounting Type
Manifold Mounting
Specifications Nominal Sizes
08
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Short Description
RVP Check valves
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.1 kg | 0.22 lb
