Ruggedized High Voltage Single Pin Connector - 12-18 kVDC
Ruggedized High Voltage Single Pin Connector - 12-18 kVDC
SKU:HIG-08ed91
Ruggedized 12-18 kVDC High Voltage Single Pin Connector for demanding applications, offering high reliability and durability.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Ruggedized High Voltage Single Pin Connector - 12-18 kVDC
$89.99
Quantity: 1
Claim Your Seller Account
Ruggedized High Voltage Single Pin Connector - 12-18 kVDC
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

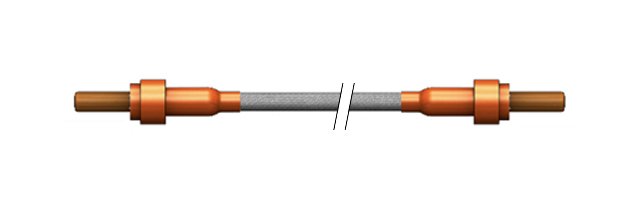

The 12-18 kVDC Ruggedized PeeWee Series Single Pin Connector is designed for high voltage applications requiring durability and reliability. With a straight, double-ended assembly featuring etched FEP wire with Nomex jacket, this connector ensures secure connections in challenging environments. Rated for altitudes up to 70,000 ft and operating temperatures from -55 to 125 ºC, it offers a current rating of 5 Amp and a test voltage of 18 kVDC. Ideal for diverse applications such as High Voltage Power Supplies, Radar Systems, and Medical Equipment, this connector meets industry standards for performance and longevity.
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic
Cable Wire Properties Wire Diameter

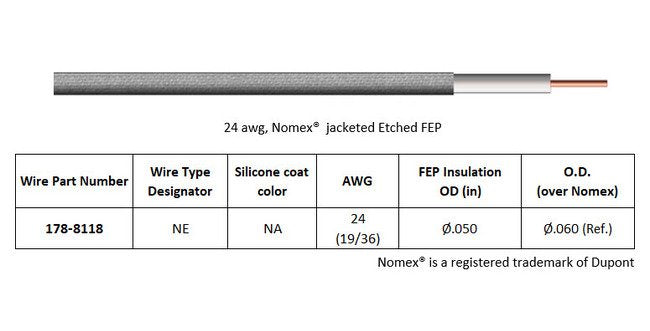

nomex over Ã.050 in
Cable Wire Properties Wire Insulation
Nomex over etched FEP
Contact Properties Contact Diameter Pin Diameter
n/a
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug, Straight, Double-Ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
