Ruggedized High Voltage Single Pin Connector - 12-18 kVDC PeeWee Series
Ruggedized High Voltage Single Pin Connector - 12-18 kVDC PeeWee Series
SKU:HIG-8d8663
Ruggedized High Voltage Single Pin Connector - Reliable, High Performance Connector for Industrial and High Voltage Applications
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ruggedized High Voltage Single Pin Connector - 12-18 kVDC PeeWee Series
$49.99
Quantity: 1
Claim Your Seller Account
Ruggedized High Voltage Single Pin Connector - 12-18 kVDC PeeWee Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Designed for rugged applications, the Ruggedized PeeWee Series Single Pin Connector offers exceptional performance in high voltage environments. With a current rating of 5 Amp and a test voltage of 18 kVDC, this connector is suitable for a wide range of applications including High Voltage Power Supplies, TWT / TWTA systems, and more. Its straight receptacle design with etched FEP wire and Nomex jacket ensures reliable connectivity and durability. Operating temperature ranges from -55 to 125 ºC, making it versatile for various industrial settings. Mates seamlessly with standard PeeWee and PWR connectors for added convenience.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic
Cable Wire Properties Wire Diameter

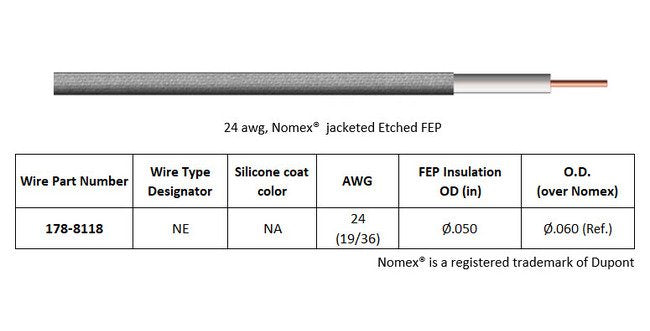

nomex over Ã.050 in
Cable Wire Properties Wire Insulation
Nomex over etched FEP
Contact Properties Contact Diameter Pin Diameter
Ã.030 in
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle, Straight, Single-ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
