Ruggedized PeeWee 12-18 kVDC High Voltage Single Pin Connector
Ruggedized PeeWee 12-18 kVDC High Voltage Single Pin Connector
SKU:HIG-565049
High-performance 12-18 kVDC single-ended plug for demanding applications. Mates with all push-pull PeeWee connectors.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ruggedized PeeWee 12-18 kVDC High Voltage Single Pin Connector
$49.99
Quantity: 1
Claim Your Seller Account
Ruggedized PeeWee 12-18 kVDC High Voltage Single Pin Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ruggedized PeeWee Series offers a high-performance single-ended plug with a right-angle design, featuring Etched FEP wire and a protective Nomex jacket. With a current rating of 5 Amp and a test voltage of 18 kVDC, this connector is designed for demanding applications from -55 to 125°C. It mates seamlessly with all push-pull standard PeeWee and PWR connectors and cable assemblies, making it ideal for high voltage power supplies, radar systems, medical instrumentation, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic
Cable Wire Properties Wire Diameter

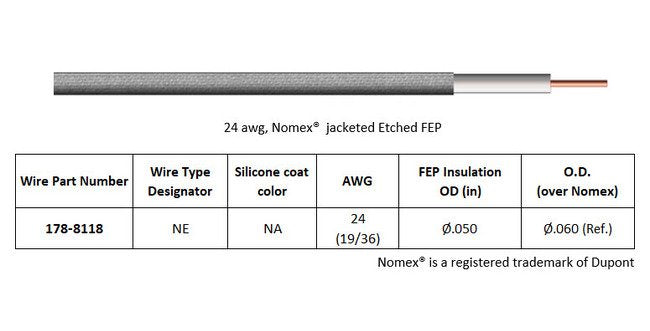

nomex over Ã.050 in
Cable Wire Properties Wire Insulation
Nomex over etched FEP
Contact Properties Contact Diameter Pin Diameter
n/a
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug, Right Angle, Single-ended, C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
