Ruggedized PeeWee High Voltage Single Pin Connector
Ruggedized PeeWee High Voltage Single Pin Connector
SKU:HIG-0797b7
Reliable Ruggedized PeeWee High Voltage Connector for demanding applications. Straight, single-ended design with Etched FEP wire and Nomex jacket insulation.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ruggedized PeeWee High Voltage Single Pin Connector
$49.99
Quantity: 1
Claim Your Seller Account
Ruggedized PeeWee High Voltage Single Pin Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ruggedized PeeWee Series 12-18 kVDC High Voltage Single Pin Connector is designed for demanding applications requiring reliable high voltage connectivity. Featuring a straight, single-ended assembly with etched FEP wire insulated by Nomex jacket, this connector ensures secure and efficient power transmission in extreme conditions. With a current rating of 5 Amp and operating temperature range of -55 to 125 °C, it meets the stringent requirements of High Voltage Power Supplies, Radar Systems, and Semiconductor Wafer Processing Equipment. Tested at 20 kVDC, this connector offers unmatched performance and compatibility with various push-pull standard PeeWee and PWR connectors and cable assemblies.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic
Cable Wire Properties Wire Diameter

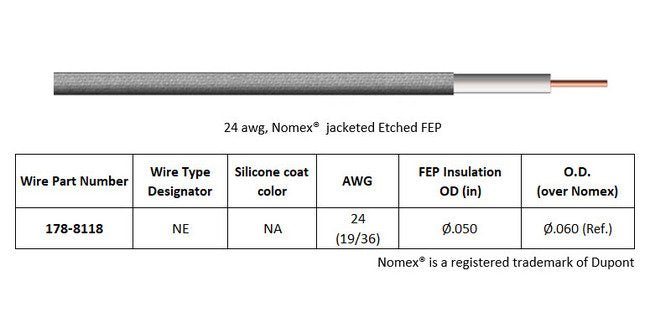

nomex over Ã.050 in
Cable Wire Properties Wire Insulation
Nomex over etched FEP
Contact Properties Contact Diameter Pin Diameter
n/a
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Straight, Single-ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
20 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
