Ruggedized PeeWee High Voltage Single Pin Connector 12-18 kVDC
Ruggedized PeeWee High Voltage Single Pin Connector 12-18 kVDC
SKU:HIG-393ace
Ruggedized PeeWee High Voltage Single Pin Connector for high-performance applications. Sea Level to 10,000 ft rating, -55 to 125 °C temperature range, and 21 kVDC test voltage.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ruggedized PeeWee High Voltage Single Pin Connector 12-18 kVDC
$45.99
Quantity: 1
Claim Your Seller Account
Ruggedized PeeWee High Voltage Single Pin Connector 12-18 kVDC
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ruggedized PeeWee Series High Voltage Single Pin Connector is designed for demanding environments, featuring a red colored Si-coated FEP wire with a Nomex jacket for exceptional durability. With a ground level rating from Sea Level to 10,000 ft and an altitude reduced pressure rating of 70,000 ft, this connector ensures reliable performance under varying conditions. Operating within a temperature range of -55 to 125 °C, and boasting a test voltage of 21 kVDC, this connector is ideal for High Voltage Power Supplies, Radar Systems, Medical Equipment, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic
Cable Wire Properties Wire Diameter

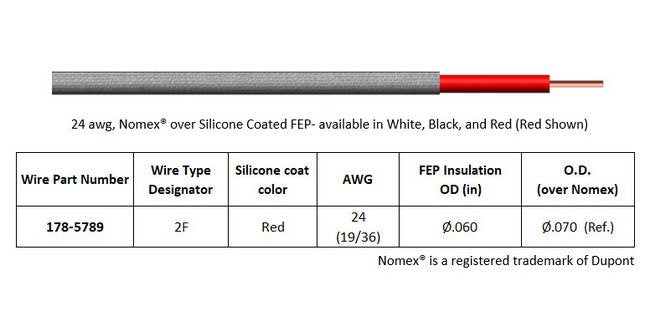

nomex over Ã.060 in
Cable Wire Properties Wire Insulation
Nomex over silicone coated FEP
Contact Properties Contact Diameter Pin Diameter
n/a
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Straight, Single-ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
21 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
